Why Choose the ABB CP2-10B-10 Compact Pushbutton?
The ABB CP2-10B-10 is a compact maintained industrial pushbutton designed for operator control functions in machinery, automation systems and electrical control panels. Part of the ABB Compact CP2 range, it combines the operator and contact function in an all-in-one assembly designed to reduce installation time and panel space requirements.

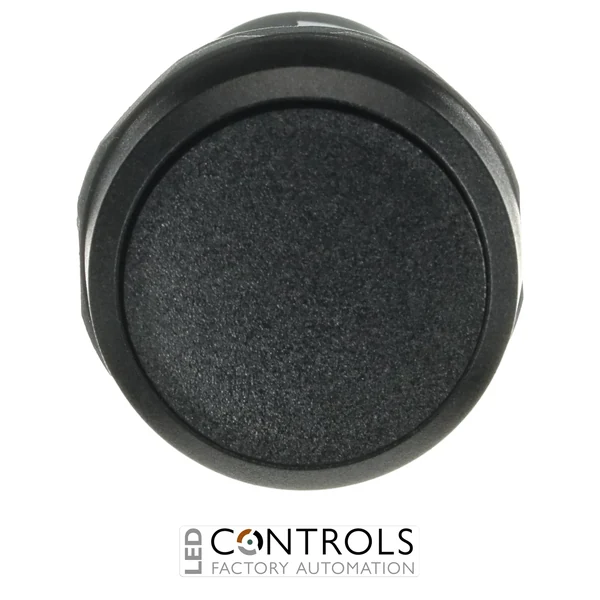

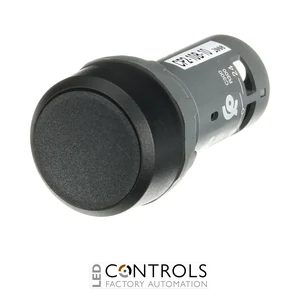

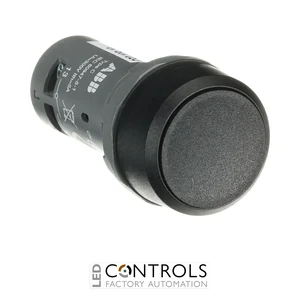

This pushbutton features a black flush round actuator, black plastic bezel and 1 normally open (1NO) contact. It is non-illuminated and uses maintained operation, allowing the selected switching state to remain in position after the actuator has been operated.
Designed for industrial panel mounting, the CP2-10B-10 provides IP66, IP67 and IP69K front protection and IP20 protection at the auxiliary terminals. Its compact dimensions of approximately 30 × 30 × 55 mm and low weight of approximately 0.018 kg make it a space-efficient operator device for industrial machinery and control systems.
Key Advantages
- Maintained operation for control functions that require the selected switching state to be retained.
- Black flush actuator for a compact and clearly identifiable operator interface.
- 1NO contact configuration for normally open maintained switching.
- Black plastic bezel provides a compact panel appearance.
- IP66, IP67 and IP69K front protection supports use in demanding industrial environments.
- 22 mm-class industrial pilot-device format for control-panel integration.
- ABB all-in-one compact construction helps reduce installation time and space requirements.
Key Features
- ABB Compact / CP2 pushbutton range.
- CP2-10B-10 model designation.
- Black flush round actuator.
- Maintained operating action.
- 1NO contact configuration.
- Non-illuminated operator.
- Black plastic bezel.
- Screw terminal connection.
- 300 V rated insulation voltage.
- IP66 / IP67 / IP69K front protection.
- 0.5 million operations mechanical durability.
Maintained Operator Control for Industrial Machinery
Maintained pushbuttons are used where an operator command needs to remain selected after the actuator has been operated. The ABB CP2-10B-10 combines a maintained mechanism with one normally open contact, providing a compact switching interface for compatible machine-control and automation circuits.
The ABB Compact range integrates the operator and electrical contact into a space-efficient assembly. With its black flush actuator, black plastic bezel, screw connection and high level of dust and water resistance at the front, the CP2-10B-10 provides a practical solution for industrial machinery and electrical control panels.
Typical Applications
- Industrial machinery control panels.
- Machine operator stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process automation panels.
- Maintained machine-control and mode-selection functions.
- OEM machinery and industrial automation systems.
