Why Choose the ABB CP2-10R-20 Compact Pushbutton?
The ABB CP2-10R-20 is a compact maintained pushbutton designed for industrial machinery, automation systems and electrical control panels. Supplied under ABB order code 1SFA619101R1021, it forms part of the ABB CP2 Compact pushbutton range, combining the operator and switching contacts in a space-efficient all-in-one assembly.

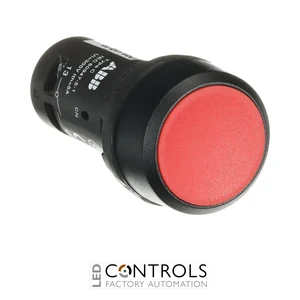

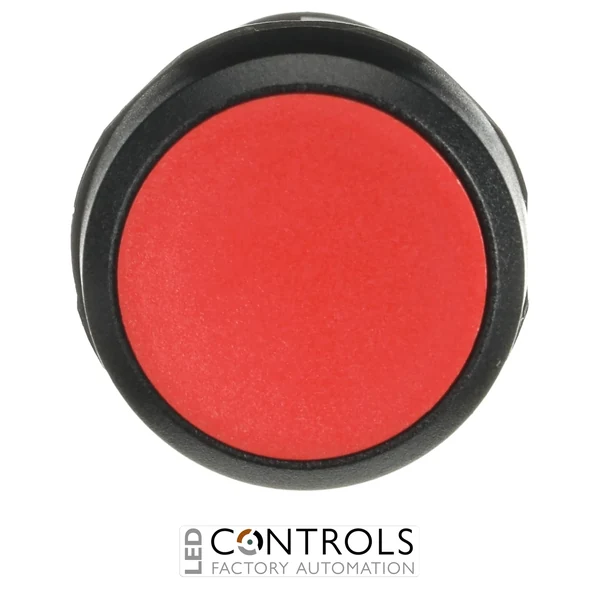

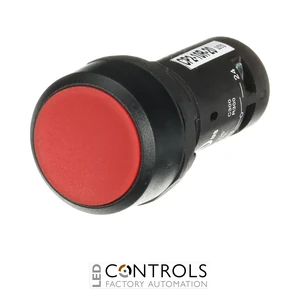

This pushbutton features a flush red actuator, black plastic bezel and 2 normally open (2NO) contacts. Unlike a spring-return momentary pushbutton, the CP2-10R-20 uses maintained operation, allowing the operator to remain in its selected switching state after actuation.
Designed for 22 mm panel mounting, the CP2-10R-20 uses screw terminals for straightforward control wiring. Its robust construction, IP66 / IP67 / IP69K front protection and operating temperature range from -25 to +70 °C make it suitable for demanding industrial operator stations and machine-control environments.
Key Advantages
- Maintained switching action for applications requiring a retained operator state.
- 2 normally open (2NO) contacts for simultaneous control of two circuits.
- Flush red actuator with a durable black plastic bezel.
- Standard 22 mm panel mounting for industrial control panels.
- High front protection with IP66, IP67 and IP69K ratings.
- Compact all-in-one construction helps reduce installation time and panel space requirements.
Key Features
- ABB CP2 Compact pushbutton.
- Maintained operation.
- Flush round actuator.
- Red pushbutton.
- Non-illuminated operator.
- 2NO contact configuration.
- Black plastic bezel.
- 22 mm panel mounting.
- Screw terminals for electrical wiring.
- IP66 / IP67 / IP69K front protection.
Maintained Operator Control for Industrial Machinery
The ABB CP2-10R-20 is designed for control functions where the selected switching state needs to remain active after the operator has been actuated. Its maintained mechanism distinguishes it from spring-return CP1 pushbuttons and makes it suitable for control functions requiring a retained command rather than a momentary pulse.
The two normally open contacts allow two control circuits or signals to be switched from a single operator. Combined with compact construction, standard 22 mm panel mounting, screw terminals and robust IP66 / IP67 / IP69K front protection, the CP2-10R-20 provides a practical solution for industrial machinery and automation panels.
Typical Applications
- Industrial machinery control panels.
- Maintained command and control circuits.
- PLC and automation control systems.
- Motor-control panels and switchgear.
- Operator stations and control consoles.
- Manufacturing and process equipment.
