Why Choose the ABB CP2-10B-20 Compact Pushbutton?
The ABB CP2-10B-20 is a compact and robust maintained pushbutton designed for industrial control panels, machinery and automation systems. As part of the ABB Compact pushbutton range, it combines the operator and contact functions in an efficient all-in-one design that helps reduce installation time and simplify panel assembly.

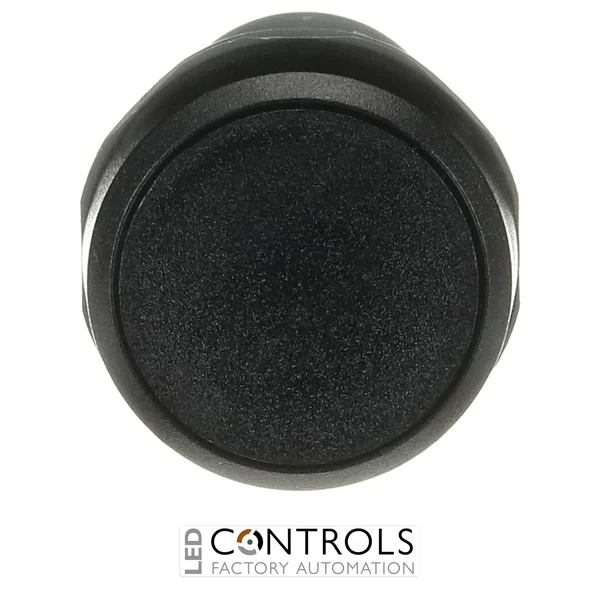

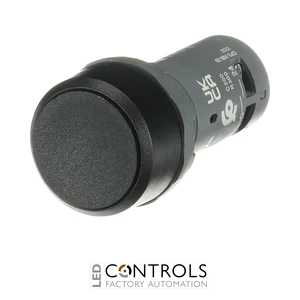

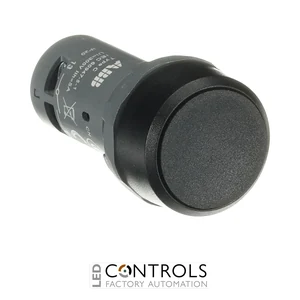

This model features a black flush actuator, black plastic bezel and non-illuminated construction. Its maintained switching mechanism retains its operated state after actuation, making it suitable for industrial commands that require a persistent contact state rather than momentary operation.
The CP2-10B-20 incorporates 2 normally open (2 NO) contacts with no normally closed contacts and uses screw terminals for secure electrical connection. Designed for a standard 22 mm panel cut-out, it combines compact construction with a high level of dust and water resistance for dependable operation in demanding industrial environments.
Key Advantages
- Compact maintained pushbutton for industrial control applications.
- Maintained switching action retains the selected contact state.
- Black flush round actuator for a clean operator interface.
- Integrated 2 NO contact configuration.
- Non-illuminated construction eliminates the need for a lamp supply.
- 22 mm panel mounting format for standard industrial operator interfaces.
- IP67/IP69K protection provides high resistance to dust and water ingress.
- Screw terminals provide straightforward and secure field wiring.
Key Features
- ABB Compact pushbutton range.
- Maintained switching function.
- Flush black actuator.
- Non-illuminated design.
- 2 NO and 0 NC contacts.
- Black plastic bezel.
- Screw terminal electrical connections.
- 300 V rated insulation voltage.
- Designed for 22 mm panel mounting.
- IP67/IP69K degree of protection.
- Operating ambient temperature range of -25 to +70 °C.
- Compact 30 × 30 × 55 mm overall dimensions.
Maintained Control for Industrial Machinery
Maintained pushbuttons provide a persistent operator command by retaining their switching state after actuation. The ABB CP2-10B-20 uses two normally open contacts, allowing two circuits or control functions to be switched when the maintained mechanism is operated.
The ABB Compact range is designed as an efficient all-in-one solution for industrial pilot-device applications. With its black flush actuator, dual normally open contacts, screw-terminal connections and high resistance to dust and water ingress, the CP2-10B-20 is well suited to machine panels, operator stations and industrial automation equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation equipment.
- Machine operator stations.
- Electrical control cabinets and enclosures.
- Manufacturing and production machinery.
- Conveyor and material handling systems.
- OEM automation and machine-building applications.
