Why Choose the ABB CP2-10R-01 Compact Pushbutton?
The ABB CP2-10R-01 is a compact maintained industrial pushbutton designed for operator control functions in machinery, automation systems and electrical control panels. Part of the ABB Compact CP2 range, it combines the operator and electrical contact in an all-in-one assembly for efficient panel installation.

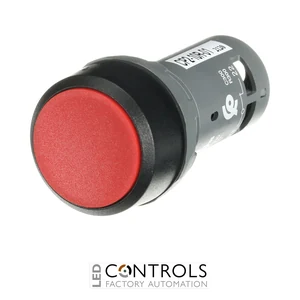

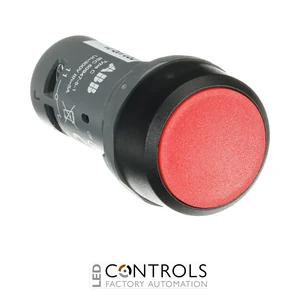

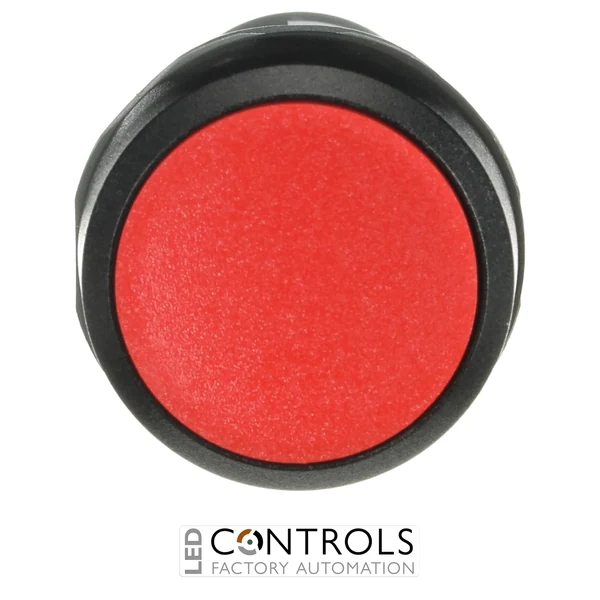

This pushbutton features a red flush round actuator, black plastic bezel and 1 normally closed (1NC) contact. It is non-illuminated and uses maintained operation, allowing the selected switching state to remain after the actuator has been operated rather than automatically returning through a spring-return mechanism.
Designed for a standard 22 mm panel mounting hole, the CP2-10R-01 uses screw terminals and provides IP66, IP67 and IP69K protection at the operator. Its compact construction and approximately 0.018 kg weight make it a space-efficient control device for industrial machinery and operator panels.
Key Advantages
- Maintained operation for control functions that require the selected state to be retained.
- Red flush actuator provides clear operator identification.
- 1NC contact configuration for normally closed maintained switching functions.
- Black plastic bezel provides a compact industrial panel appearance.
- IP66, IP67 and IP69K operator protection supports demanding industrial environments.
- Standard 22 mm panel mounting for integration into industrial control stations.
- Screw terminals provide secure electrical connection.
Key Features
- ABB Compact / CP2 pushbutton range.
- CP2-10R-01 model designation.
- Red flush / flat round actuator.
- Maintained / latching operation.
- 1NC contact configuration.
- Non-illuminated operator.
- Black plastic bezel.
- 22 mm mounting-hole diameter.
- Screw connection for electrical termination.
- 24–300 V rated operational voltage.
- IP66 / IP67 / IP69K operator protection.
Maintained Normally Closed Control for Industrial Machinery
Maintained pushbuttons are used where an operator command needs to remain selected after the actuator has been operated. The ABB CP2-10R-01 combines a maintained mechanism with one normally closed contact, providing a compact latching switching interface for compatible machine-control and automation circuits.
The ABB Compact range integrates the operator and electrical contact into a space-efficient assembly. With its red flush actuator, black plastic bezel, screw connection, standard 22 mm mounting format and IP66/IP67/IP69K operator protection, the CP2-10R-01 provides a robust solution for industrial machinery and electrical control panels.
Typical Applications
- Industrial machinery control panels.
- Machine operator stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process automation panels.
- Maintained normally closed control circuits.
- OEM machinery and industrial automation systems.
