Why Choose the ABB CP2-10G-01 Compact Pushbutton?
The ABB CP2-10G-01 is a compact maintained pushbutton designed for industrial machinery, automation systems and electrical control panels. Supplied under ABB order code 1SFA619101R1042, it forms part of the ABB CP2 Compact pushbutton range, combining the operator and switching contact in a space-efficient all-in-one assembly.

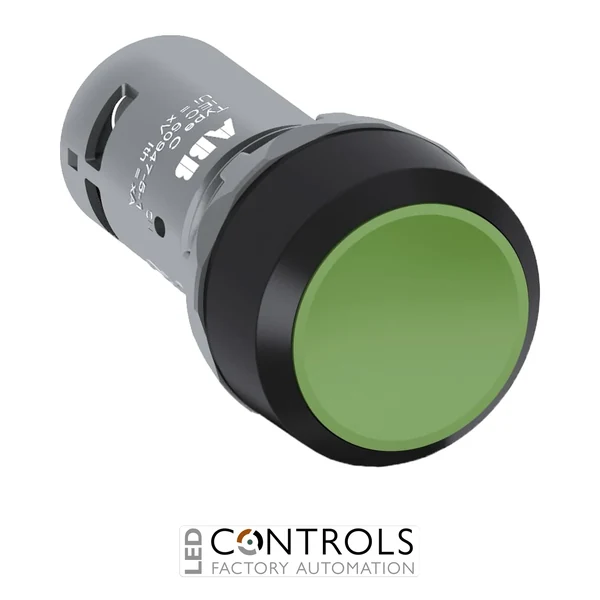

This pushbutton features a flush green actuator, black plastic bezel and 1 normally closed (1NC) contact. It is non-illuminated and uses maintained operation, allowing the selected switching state to remain in position after the actuator has been operated.
Designed for standard 22 mm panel mounting, the CP2-10G-01 uses screw terminals for straightforward control wiring. Its 300 V rated insulation voltage, compact construction and operating temperature range from -25 to +70 °C make it suitable for industrial operator stations, machinery controls and automation panels.
Key Advantages
- Maintained switching action for applications requiring a retained operator state.
- 1 normally closed (1NC) contact for maintained break-contact control functions.
- Flush green actuator with a durable black plastic bezel.
- Standard 22 mm panel mounting for industrial operator stations and control panels.
- Screw terminals provide secure and straightforward control wiring.
- Compact all-in-one construction helps reduce installation time and panel space requirements.
Key Features
- ABB CP2 Compact pushbutton.
- Maintained / latching operation.
- Flush flat actuator.
- Green round pushbutton.
- Non-illuminated operator.
- 1NC contact configuration.
- Black plastic bezel.
- 22 mm panel mounting.
- Screw-terminal connection.
- 300 V rated insulation voltage.
Maintained Normally Closed Control for Industrial Machinery
The ABB CP2-10G-01 provides maintained switching for industrial circuits requiring a normally closed contact and a retained operator position. Its 1NC contact is closed in its normal state, while operating the maintained actuator changes the contact state and retains the selected command until the operator is actuated again.
The CP2 Compact design integrates the operator and switching contact into a single space-efficient assembly. Combined with its standard 22 mm panel cut-out, black plastic bezel, screw-terminal connection and green flush actuator, the CP2-10G-01 provides a practical solution for machinery and automation applications requiring maintained normally closed control.
Typical Applications
- Industrial machinery control panels.
- Maintained normally closed control circuits.
- PLC and automation control systems.
- Motor-control panels and switchgear.
- Operator stations and control consoles.
- Manufacturing and process equipment.
