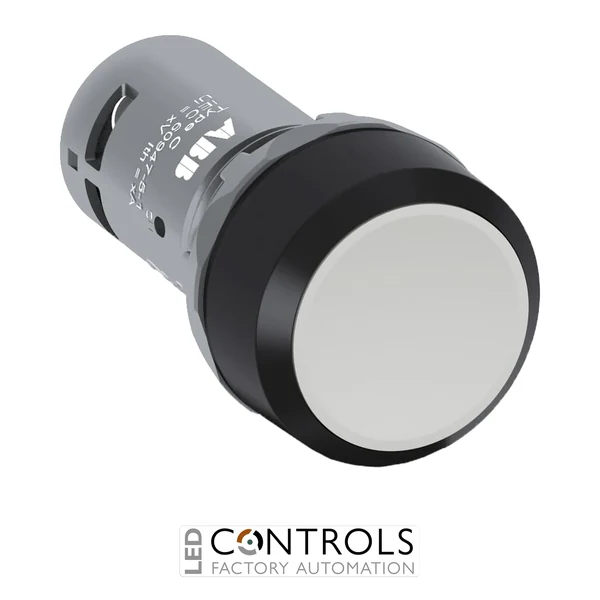

Why Choose the ABB CP2-10U-01 Compact Pushbutton?
The ABB CP2-10U-01 is a compact maintained pushbutton designed for industrial control panels, machinery and automation systems. As part of the ABB Compact pushbutton range, it combines the operator and contact functions in an efficient all-in-one design that helps simplify installation and reduce panel assembly requirements.
This model features a grey flush actuator, black plastic bezel and non-illuminated construction. Its maintained switching mechanism retains the selected contact state after actuation, making it suitable for industrial control functions that require a persistent command rather than momentary operation.
The CP2-10U-01 incorporates 1 normally closed (1 NC) contact with no normally open contacts and uses screw terminals for secure electrical connection. Designed for a standard 22 mm mounting hole, it combines compact construction with IP67/IP69K protection for dependable use in demanding industrial environments.
Key Advantages
- Compact maintained pushbutton for industrial control applications.
- Maintained switching action retains the selected contact state.
- Neutral grey flush actuator for clear operator-panel identification.
- Integrated 1 NC contact configuration.
- Non-illuminated construction for straightforward control applications.
- 22 mm mounting format for standard industrial control panels.
- IP67/IP69K protection provides high resistance to dust and water ingress.
- Screw terminals provide straightforward and secure field wiring.
Key Features
- ABB Compact pushbutton range.
- Maintained / latching switching function.
- Flush grey actuator.
- Non-illuminated design.
- 1 NC and 0 NO contacts.
- Black plastic front bezel.
- Screw terminal electrical connection.
- 300 V rating.
- Designed for 22 mm panel mounting.
- IP67/IP69K degree of protection.
- Round actuator construction.
- Compact all-in-one pilot-device design.
Maintained Control for Industrial Machinery
Maintained pushbuttons provide a persistent operator command by retaining their selected switching state after actuation. The ABB CP2-10U-01 uses a normally closed contact, providing a practical interface for industrial control circuits where a maintained switching function is required.
The ABB Compact range is designed as an efficient all-in-one solution for industrial pilot-device applications. With its grey flush actuator, integrated normally closed contact, screw-terminal connection and high resistance to dust and water ingress, the CP2-10U-01 is well suited to machine panels, operator stations and industrial automation equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation equipment.
- Machine operator stations.
- Electrical control cabinets and enclosures.
- Manufacturing and production machinery.
- Conveyor and material handling systems.
- OEM automation and machine-building applications.
