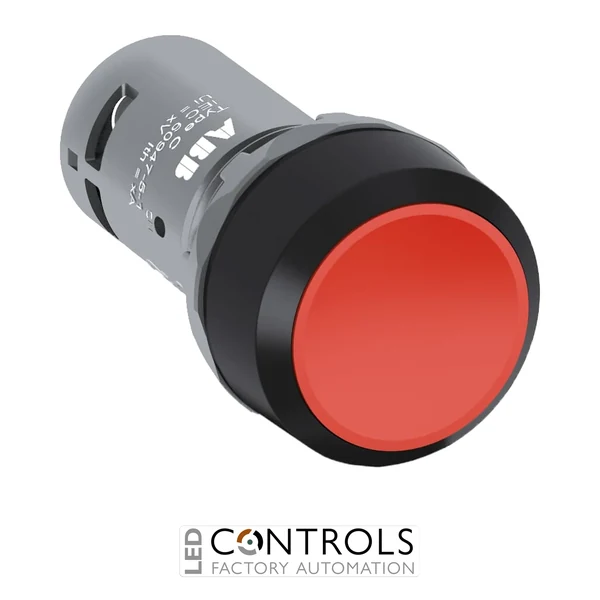

Why Choose the ABB CP2-10R-02 Compact Pushbutton?
The ABB CP2-10R-02 is a compact maintained pushbutton designed for industrial control panels, machinery and automation systems. As part of the ABB Compact pushbutton range, it combines the operator and contact functions in an efficient all-in-one design that simplifies installation and helps reduce panel assembly time.
This model features a red flush actuator, black plastic bezel and non-illuminated construction. Its maintained switching mechanism retains the selected switching state after actuation, making it suitable for industrial control functions that require a persistent command rather than momentary spring-return operation.
The CP2-10R-02 incorporates 2 normally closed (2 NC) contacts with no normally open contacts and uses screw terminals for secure electrical connection. Designed for a standard 22 mm panel cut-out, it combines compact construction with IP67/IP69K protection for dependable operation in demanding industrial environments.
Key Advantages
- Compact maintained pushbutton for industrial control applications.
- Maintained switching action retains the selected contact state.
- Highly visible red flush actuator for clear operator identification.
- Integrated 2 NC contact configuration.
- Compact black plastic bezel for space-efficient panel installation.
- 22 mm mounting format for standard industrial control panels.
- IP67/IP69K protection provides high resistance to dust and water ingress.
- Screw terminals provide straightforward and secure field wiring.
Key Features
- ABB Compact pushbutton range.
- Maintained / latching switching function.
- Flush red actuator.
- Non-illuminated design.
- 2 NC and 0 NO contacts.
- Black plastic front bezel.
- Screw terminal electrical connection.
- Designed for 22 mm panel mounting.
- IP67/IP69K degree of protection.
- Round actuator construction.
- Compact all-in-one pilot-device design.
- Low 0.022 kg unit weight.
Maintained Control for Industrial Machinery
Maintained pushbuttons provide a persistent operator command by retaining their selected switching state after actuation. The ABB CP2-10R-02 uses two normally closed contacts, enabling two control circuits to change state together when the maintained pushbutton mechanism is operated.
The ABB Compact range provides an efficient all-in-one solution for industrial pilot-device applications. With its red flush actuator, dual normally closed contacts, screw-terminal connection and high resistance to dust and water ingress, the CP2-10R-02 is well suited to machine panels, operator stations and industrial automation equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation equipment.
- Machine operator stations.
- Electrical control cabinets and enclosures.
- Manufacturing and production machinery.
- Conveyor and material handling systems.
- OEM automation and machine-building applications.
