Why Choose the ABB CP2-10G-11 Compact Pushbutton?
The ABB CP2-10G-11 is a compact and highly reliable maintained industrial pushbutton designed for machinery, automation equipment and electrical control panels. Part of the ABB Compact pilot device range and ABB product group 311530-Compact Pushbuttons, it provides a complete all-in-one operator solution designed to simplify installation while delivering dependable switching performance.

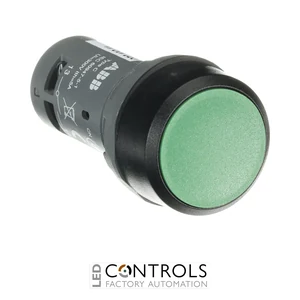

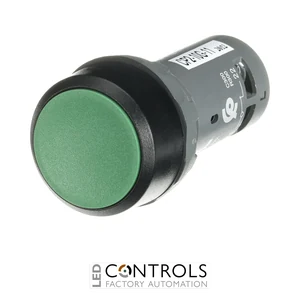

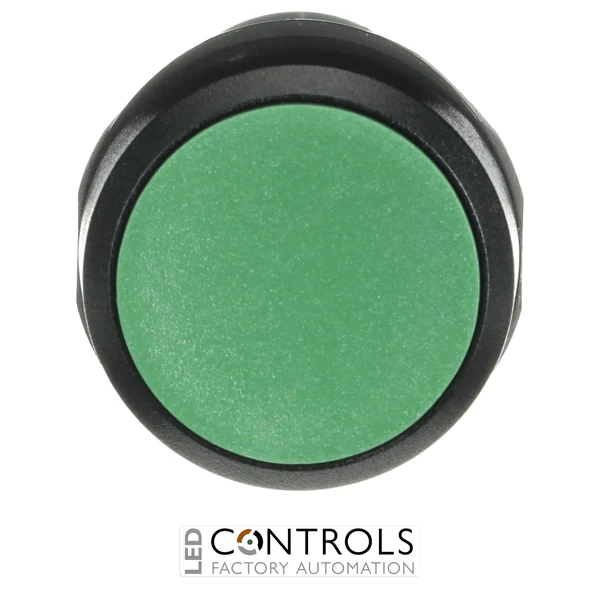

The CP2-10G-11 features a green, flush, non-illuminated actuator with a black plastic bezel and maintained switching action. It incorporates 1 normally open (NO) and 1 normally closed (NC) contact, allowing the pushbutton to perform complementary switching functions within industrial control and signalling circuits.
Designed for standard 22 mm panel mounting, the CP2-10G-11 combines compact dimensions with high environmental resistance. The front of the device is rated to IP66, IP67 and IP69K, while screw terminals provide secure electrical connections for demanding industrial installations.
Key Advantages
- Compact maintained pushbutton designed for industrial control applications.
- Green flush actuator for clear operator identification.
- Integrated 1NO + 1NC contacts provide flexible switching functionality.
- Non-illuminated construction with a durable black plastic bezel.
- High front protection with IP66, IP67 and IP69K ratings.
- Standard 22 mm panel mounting simplifies integration into control stations and machinery.
Key Features
- ABB CP2 Compact pushbutton series.
- Maintained switching function.
- 1 normally open and 1 normally closed contact.
- Green flush pushbutton actuator.
- Black plastic bezel.
- 22 mm panel mounting.
- Non-illuminated operator.
- Screw terminals with 0.8 N·m tightening torque.
- Rated insulation voltage of 300 V.
- Rated impulse withstand voltage of 6 kV.
- Mechanical durability of approximately 0.5 million operations.
Reliable Operator Control for Industrial Machinery
Industrial pushbuttons provide operators with a direct and dependable means of controlling machinery and electrical equipment. The ABB CP2-10G-11 uses a maintained mechanism, meaning the pushbutton retains its selected switching state after actuation rather than automatically returning when released.
The integrated 1NO + 1NC contact arrangement provides both normally open and normally closed switching within a single compact operator. Combined with its high degree of front protection and space-efficient 22 mm mounting format, the CP2-10G-11 is well suited to industrial control panels, operator stations and automated machinery.
Typical Applications
- Industrial machinery control panels.
- Factory automation equipment.
- Machine operator stations.
- Production and processing machinery.
- Conveyor and material handling systems.
- Electrical control cabinets and enclosures.
