Why Choose the ABB CP2-10L-11 Compact Pushbutton?
The ABB CP2-10L-11 is a compact and reliable maintained pushbutton designed for operator control in industrial machinery, electrical panels and automation systems. As part of the ABB Compact pilot device range, it combines the operator and contact functions in an integrated design for straightforward installation in control panels.

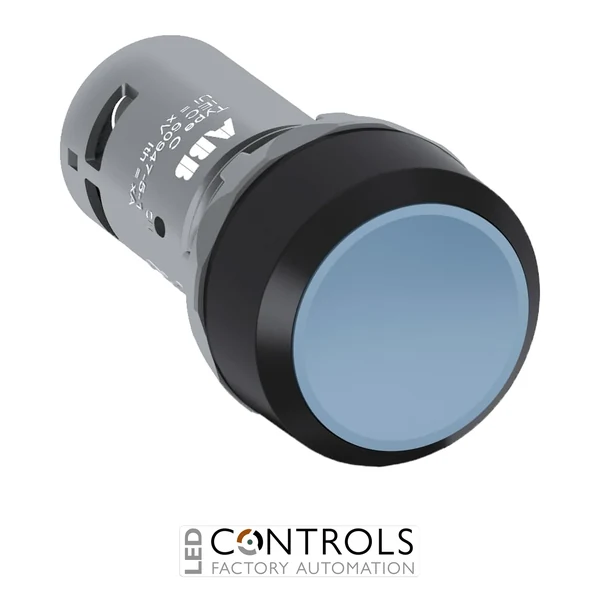

This pushbutton features a flush blue actuator with a black plastic bezel and non-illuminated construction. Its maintained operating action retains the selected switching state after the button is pressed, making it suitable for industrial control functions where a persistent command is required.
The CP2-10L-11 incorporates 1 normally open (1NO) and 1 normally closed (1NC) contact and is designed for operation in control circuits with rated operational voltages up to 300 V. Its compact construction makes it particularly suitable for machine control stations and electrical panels where dependable switching and efficient use of panel space are important.
Key Advantages
- Compact maintained pushbutton designed for industrial control applications.
- Blue flush actuator provides clear visual identification.
- Integrated 1NO + 1NC contact arrangement supports complementary control functions.
- Non-illuminated construction provides a straightforward operator interface.
- Black plastic bezel provides a compact and practical panel-mounted design.
- Integrated ABB Compact construction helps simplify installation and reduce panel space requirements.
Key Features
- ABB Compact pushbutton range.
- Maintained switching action.
- Flush blue pushbutton actuator.
- 1NO + 1NC contacts.
- 24–300 V rated operational voltage.
- 50 / 60 Hz rated frequency.
- Non-illuminated operator.
- Black plastic bezel.
- Integrated operator and contact arrangement.
- Compact panel-mounted construction for industrial control equipment.
Reliable Operator Control for Industrial Equipment
Maintained pushbuttons are used where an operator command needs to remain active after the actuator has been pressed. The ABB CP2-10L-11 provides both normally open and normally closed contacts, allowing complementary switching functions to be incorporated into machine control, signalling and industrial automation circuits.
The ABB Compact pilot device range is designed to provide practical operator interfaces while simplifying panel installation. With its blue flush actuator, maintained action and integrated 1NO + 1NC contact configuration, the CP2-10L-11 is well suited to machinery, production equipment and OEM control systems.
Typical Applications
- Industrial machinery control panels.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets.
- Process and production equipment.
- Conveyor and material handling controls.
- OEM machinery and automation equipment.
