Why Choose the ABB CP2-11R-10 Compact Illuminated Pushbutton?

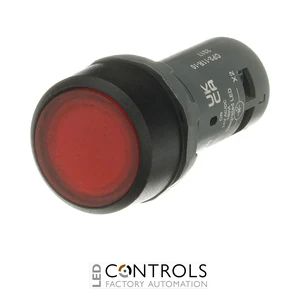

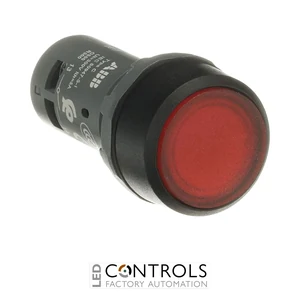

The ABB CP2-11R-10 is a compact maintained illuminated pushbutton designed for industrial control panels, machinery and automation systems. As part of the ABB Compact pushbutton range, it combines the operator, LED illumination and contact function in an efficient all-in-one design that helps simplify installation and reduce panel assembly time.

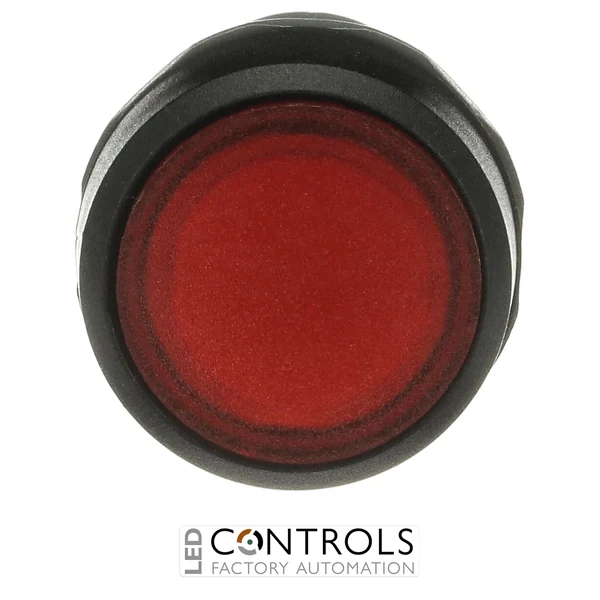

This model features a red flush illuminated actuator with a black plastic bezel. Its maintained switching mechanism retains the selected switching state after actuation, while the integrated 24 V AC/DC LED illumination provides clear visual indication for machine operators and control-panel users.
The CP2-11R-10 incorporates 1 normally open (1 NO) contact with no normally closed contacts and uses screw terminals for secure electrical connection. Designed for a standard 22 mm panel cut-out, it combines compact construction with IP67/IP69K protection for dependable operation in demanding industrial environments.
Key Advantages
- Compact maintained illuminated pushbutton for industrial control applications.
- 24 V AC/DC LED illumination provides clear visual indication.
- Maintained switching action retains the selected contact state.
- Highly visible red flush illuminated actuator.
- Integrated 1 NO contact configuration.
- 22 mm panel mounting format for standard industrial operator interfaces.
- IP67/IP69K protection provides high resistance to dust and water ingress.
- Screw terminals provide straightforward and secure field wiring.
Key Features
- ABB Compact pushbutton range.
- Maintained switching function.
- Flush red illuminated actuator.
- Integrated LED illumination.
- 24 V AC/DC illumination voltage.
- 1 NO and 0 NC contacts.
- Black plastic bezel.
- Screw terminal electrical connections.
- Designed for 22 mm panel mounting.
- IP67/IP69K degree of protection.
- 0.5 million operations mechanical durability.
- Compact 30 × 30 × 55 mm dimensions.
Illuminated Maintained Control for Industrial Machinery
Illuminated maintained pushbuttons combine manual switching with a clear visual indication at the operator interface. The ABB CP2-11R-10 uses an integrated 24 V AC/DC LED and a normally open contact, while its maintained mechanism retains the selected switching state after the actuator is operated.
The ABB Compact range provides an efficient all-in-one solution for industrial pilot-device applications. With its illuminated red flush actuator, integrated normally open contact, screw-terminal connection and high resistance to dust and water ingress, the CP2-11R-10 is well suited to machine panels, operator stations and industrial automation equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation equipment.
- Machine operator stations.
- Electrical control cabinets and enclosures.
- Manufacturing and production machinery.
- Conveyor and material handling systems.
- OEM automation and machine-building applications.
