Why Choose the ABB CP2-11G-10 Compact Illuminated Pushbutton?
The ABB CP2-11G-10 is a compact maintained illuminated pushbutton designed for industrial control panels, machinery and automation systems. As part of the ABB Compact pushbutton range, it combines the operator, illumination and contact functions in an efficient all-in-one design that helps simplify installation and reduce panel assembly time.

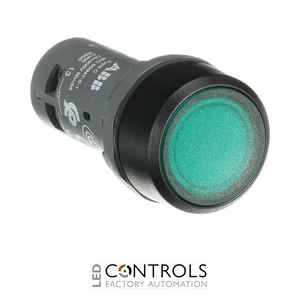

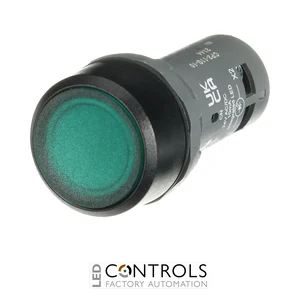

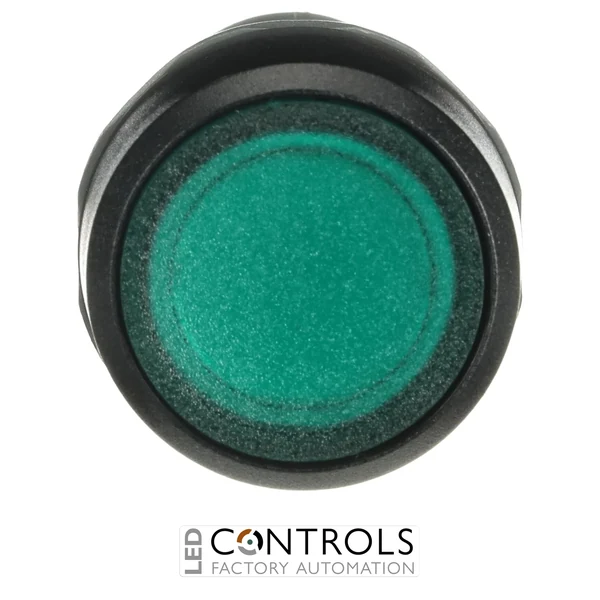

This model features a green flush illuminated actuator with a black plastic bezel. Its maintained switching mechanism retains the selected switching state after actuation, while the integrated illumination operates from a 24 V AC/DC supply to provide clear visual indication for machine operators and control-panel users.
The CP2-11G-10 incorporates 1 normally open (1 NO) contact with no normally closed contacts and uses screw terminals for secure electrical connection. Designed for a standard 22 mm panel cut-out, it combines compact 30 × 30 × 55 mm dimensions with IP66, IP67 and IP69K front protection for dependable operation in demanding industrial environments.
Key Advantages
- Compact maintained illuminated pushbutton for industrial control applications.
- 24 V AC/DC illumination provides clear visual indication.
- Maintained switching action retains the selected contact state.
- Highly visible green flush illuminated actuator.
- Integrated 1 NO contact configuration.
- 22 mm panel mounting format for standard industrial operator interfaces.
- IP66, IP67 and IP69K front protection for demanding industrial environments.
- Screw terminals provide straightforward and secure field wiring.
Key Features
- ABB Compact pushbutton range.
- Maintained switching function.
- Flush green illuminated actuator.
- 24 V AC/DC rated operating voltage.
- 1 NO and 0 NC contacts.
- Black plastic bezel.
- Screw terminal electrical connections.
- 300 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- Designed for 22 mm panel mounting.
- IP66 / IP67 / IP69K front protection and IP20 terminal protection.
- 0.5 million operations mechanical durability.
Illuminated Maintained Control for Industrial Machinery
Illuminated maintained pushbuttons combine manual switching with a clear visual indication at the operator interface. The ABB CP2-11G-10 uses a green illuminated actuator and normally open contact, while its maintained mechanism retains the selected switching state after the operator has actuated the pushbutton.
The ABB Compact range provides an efficient all-in-one solution for industrial pilot-device applications. With its 24 V AC/DC illumination, green flush actuator, integrated normally open contact, screw-terminal connection and high front protection ratings, the CP2-11G-10 is well suited to machine panels, operator stations and industrial automation equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation equipment.
- Machine operator stations.
- Electrical control cabinets and enclosures.
- Manufacturing and production machinery.
- Conveyor and material handling systems.
- OEM automation and machine-building applications.
