Why Choose the ABB CP2-11C-10 Pushbutton?

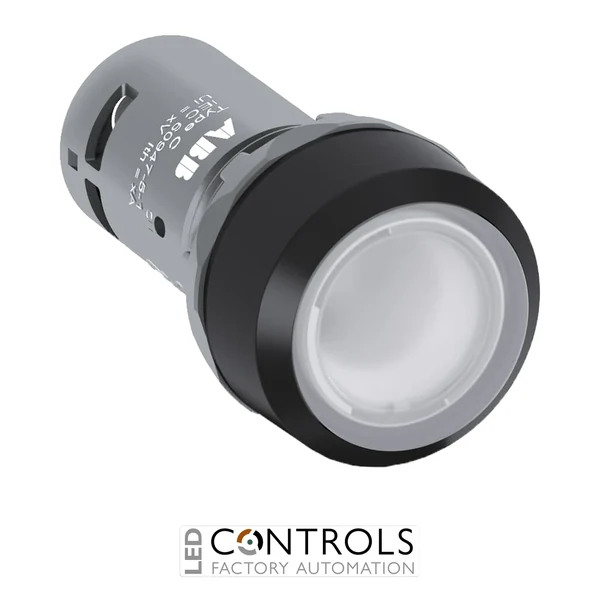

The ABB CP2-11C-10 is a compact illuminated maintained pushbutton designed for reliable operator control and visual indication in industrial machinery, electrical panels and automation systems. As part of the ABB Compact pilot device range, it combines the operator, contact and illumination functions in an efficient all-in-one design for straightforward panel installation.
This pushbutton features a flush clear illuminated actuator with a black plastic bezel and a maintained operating action. Once actuated, the pushbutton retains its selected switching state, making it suitable for control functions where a persistent command and clear illuminated indication are required.
The CP2-11C-10 incorporates 1 normally open (1NO) contact and a 24 V AC/DC illumination supply. Its compact construction, screw-terminal connections and high front-face protection make it well suited to industrial operator stations and machine control panels.
Key Advantages
- Compact illuminated maintained pushbutton for industrial control applications.
- Clear flush actuator provides illuminated visual indication.
- 24 V AC/DC illumination supply suitable for common industrial control systems.
- Integrated 1NO contact for straightforward switching functions.
- Front protection up to IP66, IP67 and IP69K for demanding environments.
- ABB Compact all-in-one construction helps reduce installation time and panel space requirements.
Key Features
- ABB Compact pushbutton range.
- Maintained switching action.
- Flush clear illuminated actuator.
- 1 normally open (1NO) contact.
- 24 V AC/DC illumination supply.
- 300 V rated insulation voltage.
- 50 / 60 Hz rated frequency.
- Black plastic bezel.
- Screw-terminal electrical connections.
- Front protection ratings of IP66, IP67 and IP69K.
- Mechanical durability of 0.5 million operations.
Illuminated Operator Control for Industrial Equipment
Illuminated maintained pushbuttons combine electrical switching with a visible indication at the operator interface. The ABB CP2-11C-10 retains its switching state after operation while its clear illuminated actuator provides an easily identifiable indication for machine control and automation functions.
The ABB Compact range is designed as an integrated pilot-device solution for efficient panel installation. With its 1NO contact, 24 V AC/DC illumination and high front-face ingress protection, the CP2-11C-10 is suitable for operator stations and industrial equipment where dependable control and visible status indication are required.
Typical Applications
- Industrial machinery control panels.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets.
- Process and production equipment.
- Conveyor and material handling controls.
- OEM machinery and automation systems.
