Why Choose the ABB CP2-11R-01 Pushbutton?
The ABB CP2-11R-01 is a compact illuminated maintained pushbutton designed for dependable operator control and visual indication in industrial machinery, electrical panels and automation systems. As part of the ABB Compact pilot device range, it combines the operator, illumination and switching contact in an integrated design for straightforward panel installation.

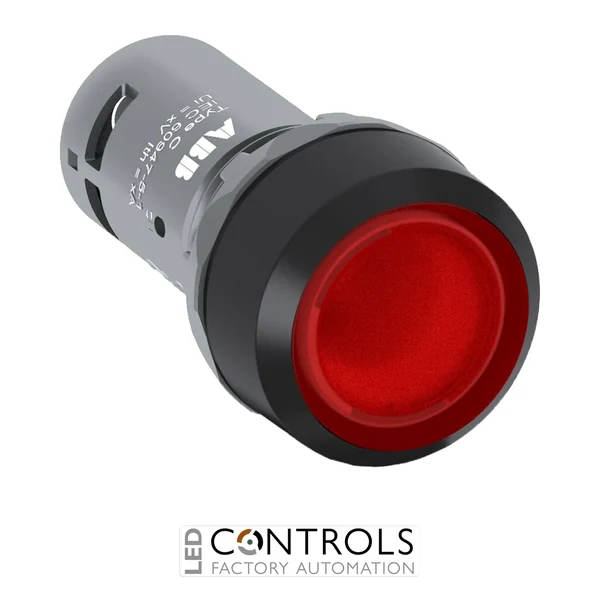

This pushbutton features a flush red illuminated actuator with a black plastic bezel and maintained operating action. Once actuated, the pushbutton retains its selected switching state, making it suitable for control functions where a persistent command and clearly visible red indication are required.
The CP2-11R-01 incorporates 1 normally closed (1NC) contact and is designed with 24 V AC/DC illumination. Its compact construction makes it particularly suitable for machine control stations, industrial operator panels and OEM equipment requiring a durable illuminated control interface.
Key Advantages
- Compact illuminated maintained pushbutton for industrial control applications.
- Red flush illuminated actuator provides clear visual identification.
- 24 V AC/DC illumination suits common industrial control supplies.
- Integrated 1NC contact for normally closed control functions.
- Black plastic bezel provides a practical compact operator interface.
- Integrated ABB Compact construction helps simplify panel installation and reduce space requirements.
Key Features
- ABB Compact pushbutton range.
- Maintained switching action.
- Flush red illuminated actuator.
- 1 normally closed (1NC) contact.
- 24 V AC/DC rated illumination voltage.
- Black plastic bezel.
- Integrated illuminated operator and contact arrangement.
- Compact panel-mounted construction.
- Designed for industrial control and signalling applications.
- Product weight of approximately 0.025 kg.
Illuminated Operator Control for Industrial Equipment
Illuminated maintained pushbuttons combine electrical switching with visual indication at the operator interface. The ABB CP2-11R-01 retains its switching state after operation and provides a normally closed contact, making it suitable for industrial control circuits requiring maintained operation together with a clearly identifiable red illuminated actuator.
The ABB Compact pilot device range is designed to simplify installation by integrating the operator and electrical functions into a compact assembly. With its 24 V AC/DC illumination, 1NC contact and black plastic bezel, the CP2-11R-01 provides a practical control solution for modern machinery and automation systems.
Typical Applications
- Industrial machinery control panels.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets.
- Process and production equipment.
- Conveyor and material handling controls.
- OEM machinery and automation equipment.
