Why Choose the ABB CP2-12G-10 Compact Pushbutton?
The ABB CP2-12G-10 is a compact and reliable illuminated maintained pushbutton designed for industrial machinery, automation systems and electrical control panels. Part of the ABB Compact pilot device range and ABB product group 311530-Compact Pushbuttons, it combines operator control, electrical switching and visual indication in an efficient all-in-one design.

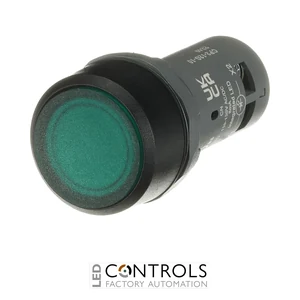

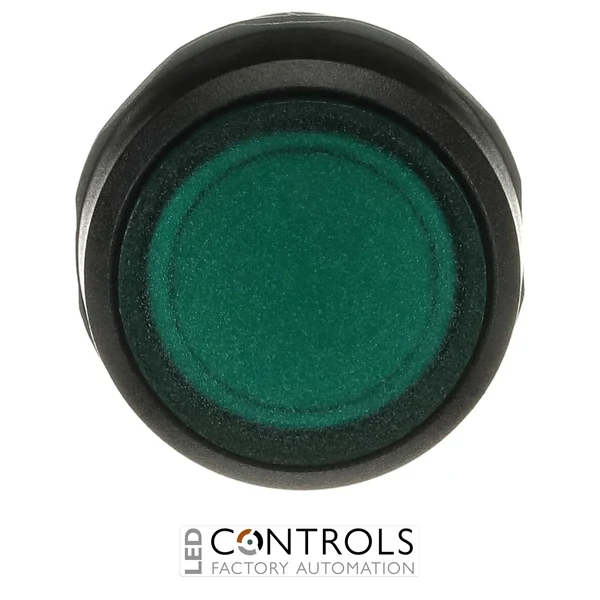

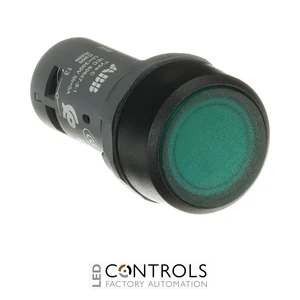

The CP2-12G-10 features a green illuminated flush actuator with a black plastic bezel and maintained switching action. It incorporates 1 normally open (NO) contact and LED illumination, providing dependable switching together with clear visual indication for machine and process control applications.
Designed for standard 22 mm panel mounting, the CP2-12G-10 uses 110–130 V AC/DC illumination and screw-terminal electrical connections. Its compact construction and high front protection ratings of IP66, IP67 and IP69K make it suitable for demanding industrial environments where reliable operator control is required.
Key Advantages
- Compact illuminated maintained pushbutton for industrial control applications.
- Green illuminated flush actuator provides clear operator indication.
- Integrated 1 normally open (NO) contact for control and signalling circuits.
- 110–130 V AC/DC LED illumination suitable for industrial electrical systems.
- High front protection with IP66, IP67 and IP69K ratings.
- Standard 22 mm panel mounting simplifies installation in control panels and operator stations.
Key Features
- ABB CP2 Compact pushbutton series.
- Maintained switching function.
- 1 normally open (NO) contact.
- Green illuminated flush pushbutton actuator.
- Integrated LED illumination.
- 110–130 V AC/DC rated illumination voltage.
- Black plastic bezel.
- 22 mm panel mounting.
- Screw-terminal connection.
- Compact all-in-one construction for efficient panel installation.
Illuminated Operator Control for Industrial Machinery
Illuminated pushbuttons combine manual switching with visual status indication, helping operators identify machine functions and equipment states quickly. The ABB CP2-12G-10 uses a maintained switching mechanism, meaning the selected switching state is retained after actuation rather than automatically returning when the button is released.
The integrated 1NO contact provides normally open switching, while the green LED illumination delivers a clear visual indication at the operator interface. Combined with its compact 22 mm mounting format and robust environmental protection, the CP2-12G-10 is well suited to industrial control panels, operator stations and automated machinery.
Typical Applications
- Industrial machinery control panels.
- Factory automation equipment.
- Machine operator stations.
- Production and processing machinery.
- Conveyor and material handling systems.
- Electrical control cabinets and operator interfaces.
