Why Choose the ABB CP2-30B-10 Compact Pushbutton?
The ABB CP2-30B-10 is a compact maintained pushbutton designed for industrial machinery, automation systems and control panels. Part of ABB's Compact pilot-device range, its all-in-one construction combines the operator and switching contact to support straightforward, space-efficient panel installation.

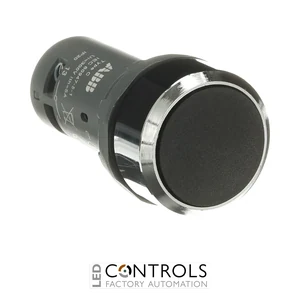

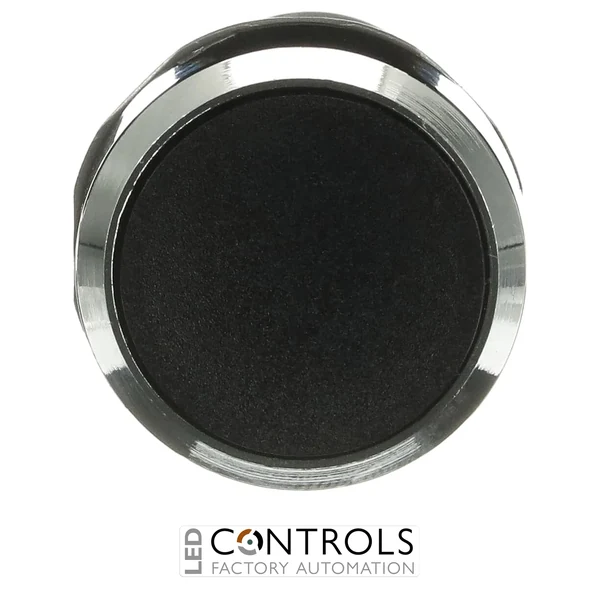

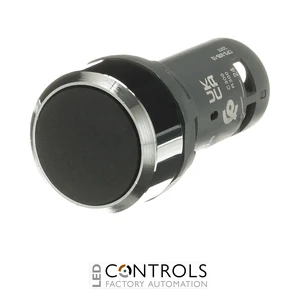

This model features a black flush actuator with a distinctive chrome metal bezel and non-illuminated construction. Its maintained switching mechanism retains the selected state after actuation, making it suitable for control functions that require a persistent command rather than spring-return operation.
The CP2-30B-10 incorporates 1 normally open (1 NO) contact and no normally closed contacts, with screw terminals for secure field wiring. It fits a standard 22 mm panel cut-out and provides IP66, IP67 and IP69K front protection, making it suitable for demanding industrial control environments.
Key Advantages
- Compact maintained pushbutton for industrial control applications.
- Maintained switching action retains the selected operating state.
- Black flush actuator provides a clean operator interface.
- Durable chrome metal bezel for industrial panel installations.
- Integrated 1 NO contact for control-circuit switching.
- Standard 22 mm panel mounting simplifies integration into machinery and control panels.
- IP66, IP67 and IP69K front protection provides high resistance to dust and water ingress.
- Screw terminals provide secure and straightforward field wiring.
Key Features
- ABB Compact pushbutton range.
- Maintained / latching switching function.
- Flush black actuator.
- Non-illuminated construction.
- 1 NO and 0 NC contacts.
- Chrome metal bezel.
- Screw-terminal electrical connection.
- Standard 22 mm mounting hole.
- IP66 / IP67 / IP69K front protection.
- IP20 terminal protection.
- Compact 30 × 30 × 55 mm overall dimensions.
- Approximate net weight of 0.033 kg.
Maintained Control for Industrial Machinery
Maintained pushbuttons provide a persistent operator command by retaining their selected switching state after actuation. The ABB CP2-30B-10 incorporates a normally open contact that changes state when the maintained mechanism is operated, providing a practical interface for machinery and automation control circuits.
The combination of a chrome metal bezel, black flush actuator, screw-terminal connection and high front protection ratings makes the CP2-30B-10 suitable for industrial operator stations and control panels. Its standard 22 mm mounting format also facilitates integration into new machinery and replacement applications.
Typical Applications
- Industrial machinery control panels.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets and enclosures.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- OEM machinery and automation equipment.
