Why Choose the ABB CP3-10L-10 Pushbutton?
The ABB CP3-10L-10 is a compact and reliable momentary pushbutton designed for operator control in industrial machinery, electrical panels and automation systems. As part of the ABB Compact pilot device range, it combines an extended operator and integrated switching contact in an efficient all-in-one design for straightforward panel installation.

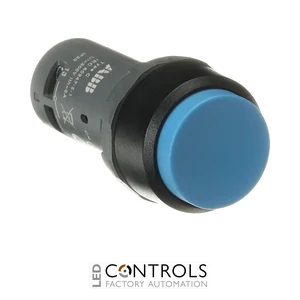

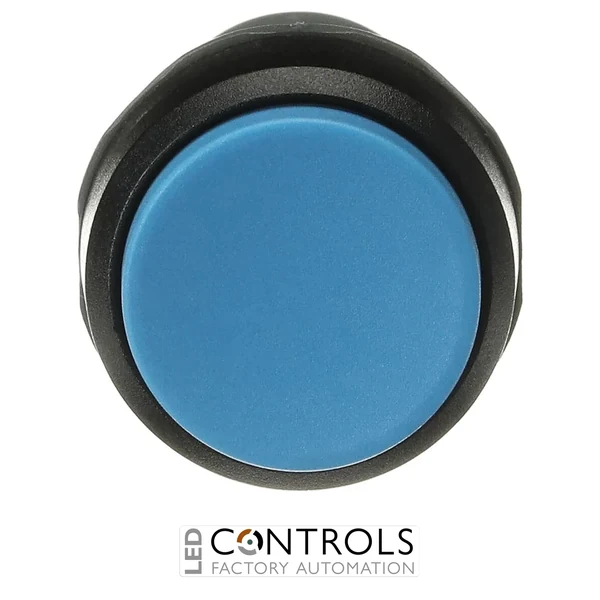

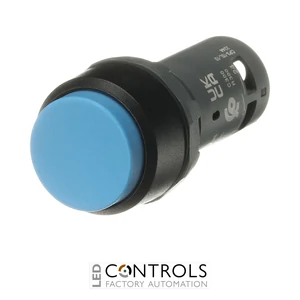

This pushbutton features a blue extended actuator with a black plastic bezel and non-illuminated construction. Its momentary operating action changes the contact state only while the actuator is operated and returns automatically when released, making it suitable for command and control functions such as machine sequencing, acknowledgement and general operator inputs.
The CP3-10L-10 incorporates 1 normally open (1NO) contact, screw terminals and a rated operational voltage of up to 300 V. The front of the device provides IP66, IP67 and IP69K protection, making this compact operator suitable for demanding industrial control environments.
Key Advantages
- Compact momentary pushbutton designed for industrial control applications.
- Blue extended actuator provides a prominent operator interface.
- Integrated 1NO contact for normally open control functions.
- IP66 / IP67 / IP69K front protection supports demanding industrial installations.
- Black plastic bezel provides a practical and compact panel-mounted design.
- ABB Compact all-in-one construction helps simplify installation and reduce panel space requirements.
Key Features
- ABB CP3 Compact pushbutton range.
- Momentary switching action.
- Extended blue pushbutton actuator.
- 1 normally open (1NO) contact.
- Non-illuminated construction.
- Black plastic bezel.
- 300 V rated insulation voltage.
- 300 V maximum rated operational voltage.
- 50 / 60 Hz rated frequency.
- Screw terminals with 0.8 N·m tightening torque.
- IP66 / IP67 / IP69K front protection and IP20 terminal protection.
- Mechanical durability of 0.5 million operations.
Reliable Momentary Control for Industrial Machinery
Momentary pushbuttons are used to provide temporary electrical commands, with the contact returning to its normal state when the operator releases the actuator. The ABB CP3-10L-10 provides a single normally open contact, making it suitable for machine commands, control inputs and other industrial automation functions requiring momentary switching.
The ABB Compact pilot device range is designed to combine reliable switching with efficient panel installation. The CP3-10L-10 adds an extended actuator for prominent operation, while its high front-face ingress protection, broad operating temperature range and durable switching mechanism support dependable use in industrial equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets.
- Process and production equipment.
- Conveyor and material handling controls.
- OEM machinery and automation systems.
