Why Choose the ABB CP3-10R-01 Pushbutton?
The ABB CP3-10R-01 is a compact momentary pushbutton designed for dependable operator control in industrial machinery, electrical panels and automation systems. As part of the ABB Compact pilot device range, it combines an extended operator and integrated switching contact in an efficient complete-unit design for straightforward panel installation.

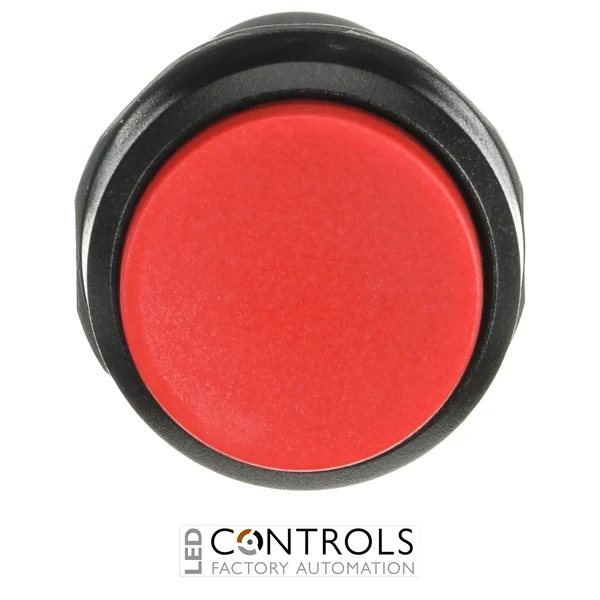

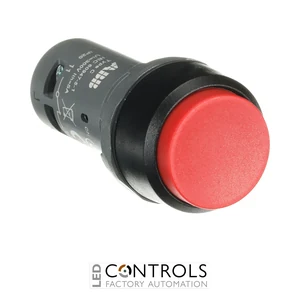

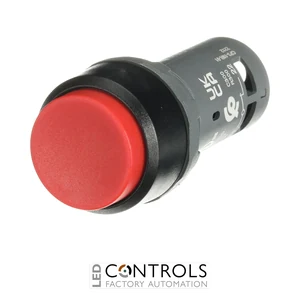

This pushbutton features a red extended actuator with a black plastic bezel and non-illuminated construction. Its spring-return momentary action changes the contact state while the actuator is pressed and automatically returns to its normal position when released, making it suitable for temporary machine commands and control inputs.
The CP3-10R-01 incorporates 1 normally closed (1NC) contact, screw-terminal connections and a standard 22 mm mounting-hole format. With IP66, IP67 and IP69K front protection, a broad operating temperature range and a compact complete-unit construction, it is well suited to demanding industrial operator stations and control panels.
Key Advantages
- Compact momentary pushbutton for industrial control applications.
- Red extended actuator provides a prominent and clearly identifiable operator interface.
- Integrated 1NC contact for normally closed switching functions.
- Spring-return operation automatically restores the contact to its normal state when released.
- IP66 / IP67 / IP69K front protection supports demanding industrial installations.
- ABB Compact all-in-one construction helps simplify installation and reduce panel space requirements.
Key Features
- ABB CP3 Compact pushbutton range.
- Momentary, spring-return switching action.
- Extended red pushbutton actuator.
- 1 normally closed (1NC) contact.
- Non-illuminated construction.
- Black plastic bezel.
- 22 mm mounting-hole diameter.
- Screw-terminal electrical connection.
- 300 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- IP66 / IP67 / IP69K front protection and IP20 terminal protection.
- Mechanical durability of 0.5 million operations.
Reliable Momentary Control for Industrial Machinery
Momentary pushbuttons provide temporary electrical commands and automatically return to their normal state when released. The ABB CP3-10R-01 uses a normally closed contact, so operating the red extended actuator opens the NC circuit for as long as the button remains pressed before spring-return action restores the normal contact state.
The ABB Compact pilot device range combines reliable switching with efficient panel installation. With its extended actuator, 1NC contact, screw connection and robust front-face ingress protection, the CP3-10R-01 provides a practical operator control solution for machinery, industrial automation and electrical control equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets.
- Process and production equipment.
- Conveyor and material handling controls.
- OEM machinery and automation systems.
