Why Choose the ABB CP3-10Y-11 Pushbutton?
The ABB CP3-10Y-11 is a compact momentary pushbutton designed for dependable operator control in industrial machinery, electrical panels and automation systems. As part of the ABB Compact pilot device range, it combines an extended operator and integrated switching contacts in an efficient all-in-one design for straightforward panel installation.

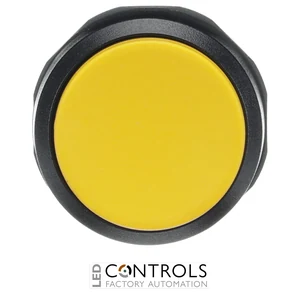

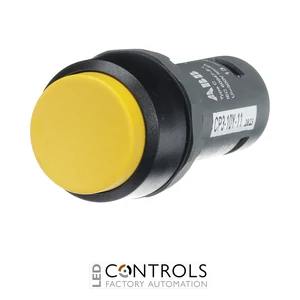

This pushbutton features a yellow extended actuator with a black plastic bezel and non-illuminated construction. Its momentary operating action changes the contact states while the actuator is pressed and returns them to their normal states when released, making it suitable for machine commands, signalling and other temporary operator-control functions.
The CP3-10Y-11 incorporates 1 normally open (1NO) and 1 normally closed (1NC) contact, providing complementary switching functions from a single operator. It uses a standard 22 mm mounting-hole format, screw connections and IP67 / IP69K protection, making it well suited to demanding industrial control environments.
Key Advantages
- Compact momentary pushbutton for industrial control applications.
- Yellow extended actuator provides a prominent and clearly identifiable operator interface.
- Integrated 1NO + 1NC contact arrangement supports complementary switching functions.
- Spring-return momentary operation restores the contacts to their normal states when released.
- IP67 / IP69K protection supports installation in demanding industrial environments.
- ABB Compact all-in-one construction helps simplify installation and reduce panel space requirements.
Key Features
- ABB CP3 Compact pushbutton range.
- Momentary switching action.
- Extended yellow pushbutton actuator.
- 1 normally open (1NO) + 1 normally closed (1NC) contact.
- Non-illuminated construction.
- Black plastic bezel.
- 300 V rated voltage.
- 22 mm mounting-hole diameter.
- Screw-terminal electrical connection.
- IP67 / IP69K protection.
- Compact 30 × 30 × 60 mm construction.
- Approximate product weight of 0.022 kg.
Reliable Momentary Control for Industrial Machinery
Momentary pushbuttons provide temporary electrical commands and return to their normal switching state when the operator releases the actuator. The ABB CP3-10Y-11 provides both normally open and normally closed contacts, enabling complementary switching functions from a single operator in machinery, signalling and industrial automation circuits.
The ABB Compact pilot device range combines reliable switching with efficient all-in-one installation. With its extended yellow actuator, 1NO + 1NC contact arrangement, screw connection and high resistance to dust and water, the CP3-10Y-11 provides a practical operator-control solution for demanding industrial equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets.
- Process and production equipment.
- Conveyor and material handling controls.
- OEM machinery and automation systems.
