Why Choose the ABB CP3-11R-10 Compact Illuminated Pushbutton?

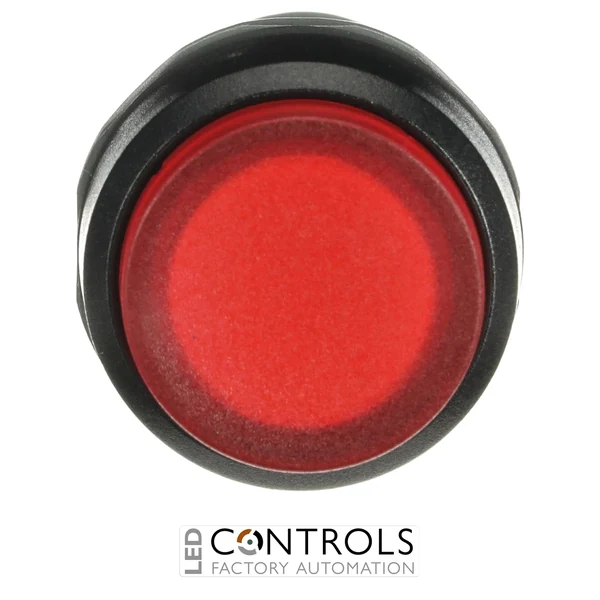

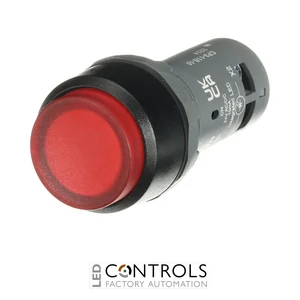

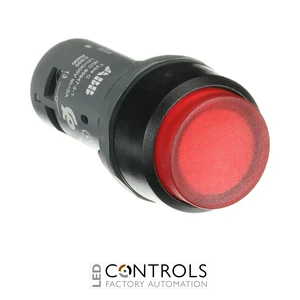

The ABB CP3-11R-10 is a compact momentary illuminated pushbutton designed for industrial machinery, automation systems and control panels. Part of ABB's Compact pilot-device range, its all-in-one construction combines the operator, LED illumination and switching contact to simplify installation and reduce panel assembly time.
This model features a red extended illuminated actuator with a black plastic bezel. Its momentary, spring-return mechanism automatically returns the actuator to its normal position after release, while the integrated 24 V AC/DC LED provides clear visual indication at the operator interface.
The CP3-11R-10 incorporates 1 normally open (1 NO) contact and no normally closed contacts, with screw terminals for electrical connection. Designed for standard 22 mm panel mounting, it provides IP66, IP67 and IP69K front protection and is engineered for reliable use in demanding industrial environments.
Key Advantages
- Compact momentary illuminated pushbutton for industrial control applications.
- 24 V AC/DC LED illumination provides clear visual indication.
- Spring-return operation automatically restores the normal switching state after release.
- Highly visible red extended illuminated actuator.
- Integrated 1 NO contact for momentary control-circuit switching.
- Standard 22 mm panel mounting supports straightforward installation.
- IP66, IP67 and IP69K front protection provides strong resistance to dust and water ingress.
- All-in-one Compact construction helps reduce installation time and component count.
Key Features
- ABB Compact CP3 range.
- Momentary / spring-return switching function.
- Extended red illuminated actuator.
- Integrated 24 V AC/DC LED.
- 1 NO and 0 NC contacts.
- Black plastic bezel.
- Screw-terminal electrical connection.
- 300 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- Standard 22 mm mounting format.
- IP66 / IP67 / IP69K front protection with IP20 terminal protection.
- Approximate unit weight of 0.025 kg.
Illuminated Momentary Control for Industrial Machinery
Illuminated momentary pushbuttons combine temporary manual switching with visual indication in a single operator device. The ABB CP3-11R-10 uses a spring-return extended actuator, 1 normally open contact and integrated red LED illumination, making it suitable for machine commands where the contact should return automatically after the operator releases the button.
The 24 V AC/DC LED, red extended actuator and black plastic bezel provide a clear industrial operator interface, while screw-terminal wiring and standard 22 mm mounting simplify panel integration. Its high front protection ratings further support use on machinery and operator stations exposed to demanding industrial conditions.
Typical Applications
- Industrial machinery control panels.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets and enclosures.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- OEM machinery and automation equipment.
