Why Choose the ABB CP3-11G-10 Compact Illuminated Pushbutton?
The ABB CP3-11G-10 is a compact momentary illuminated pushbutton designed for industrial machinery, automation systems and control panels. Part of ABB's Compact pilot-device range, its all-in-one construction combines the operator, LED illumination and switching contact to simplify installation and reduce panel assembly requirements.

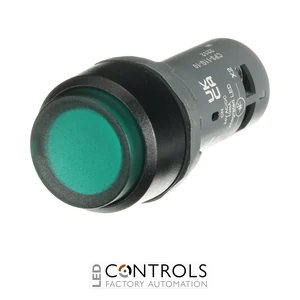

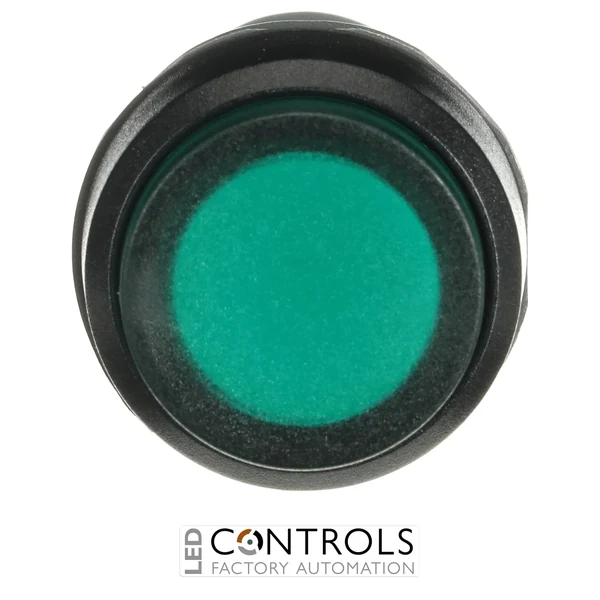

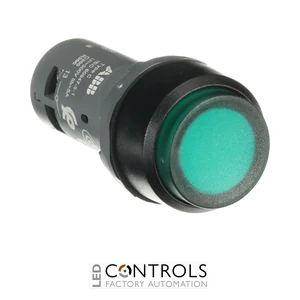

This model features a green extended illuminated actuator with a black plastic bezel. Its momentary, spring-return mechanism automatically returns the actuator to its normal position after release, while the integrated 24 V AC/DC LED provides clear visual indication for machine and process control interfaces.
The CP3-11G-10 incorporates 1 normally open (1 NO) contact and no normally closed contacts, with screw terminals for electrical connection. Designed for standard 22 mm panel mounting, it provides IP67/IP69K protection and combines compact construction with high resistance to dust and water.
Key Advantages
- Compact momentary illuminated pushbutton for industrial control applications.
- 24 V AC/DC LED illumination provides clear visual indication.
- Spring-return operation automatically restores the normal switching state after release.
- Prominent green extended illuminated actuator for operator visibility.
- Integrated 1 NO contact for momentary control-circuit switching.
- Black plastic bezel provides a clean industrial panel appearance.
- Standard 22 mm panel mounting supports straightforward installation.
- IP67/IP69K protection provides high resistance to dust and water ingress.
Key Features
- ABB Compact CP3 range.
- Momentary / spring-return switching function.
- Extended green actuator.
- Illuminated operator design.
- Integrated 24 V AC/DC LED.
- 1 NO and 0 NC contacts.
- Black plastic front ring.
- Screw-terminal electrical connection.
- Round illuminated lens construction.
- Standard 22 mm mounting hole.
- IP67/IP69K degree of protection.
- Unit weight of approximately 0.025 kg.
Illuminated Momentary Control for Industrial Machinery
Illuminated momentary pushbuttons combine temporary manual switching and visual indication in a single operator device. The ABB CP3-11G-10 uses a spring-return extended actuator, 1 normally open contact and integrated green LED illumination, making it suitable for machine commands where the contact must automatically return to its normal state after the operator releases the button.
The 24 V AC/DC LED, green extended actuator and black plastic front ring provide a clear industrial operator interface, while screw-terminal wiring and standard 22 mm mounting simplify panel integration. Its IP67/IP69K protection further supports use on machinery and operator stations exposed to demanding industrial environments.
Typical Applications
- Industrial machinery control panels.
- Machine start and command functions.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets and enclosures.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- OEM machinery and automation equipment.
