Why Choose the ABB CP3-12G-10 Pushbutton?
The ABB CP3-12G-10 is a compact illuminated momentary pushbutton designed for dependable operator control and visual indication in industrial machinery, electrical panels and automation systems. As part of the ABB Compact pilot device range, it combines an extended operator, LED illumination and an integrated switching contact in an efficient all-in-one design.

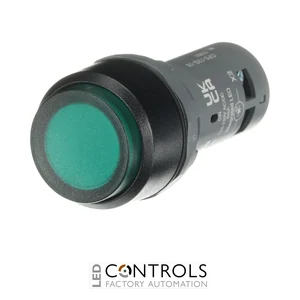

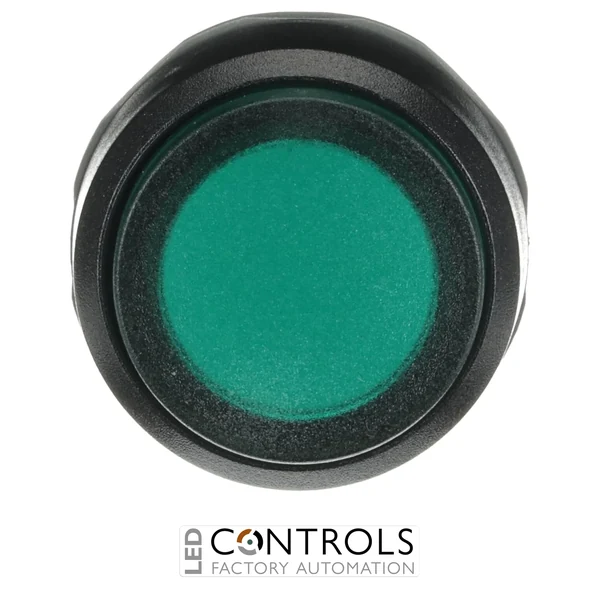

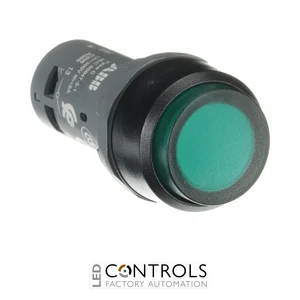

This pushbutton features a green extended illuminated actuator with a black plastic bezel. Its momentary operating action changes the contact state while the actuator is pressed and returns to its normal state when released, making it suitable for machine commands, acknowledgement functions and other temporary operator inputs where illuminated indication is beneficial.
The CP3-12G-10 incorporates 1 normally open (1NO) contact and is designed for 110–130 V AC/DC illumination. Its standard 22 mm panel mounting, screw connection and IP67 / IP69K protection make it a practical operator interface for demanding industrial control environments.
Key Advantages
- Compact illuminated momentary pushbutton for industrial control applications.
- Green extended illuminated actuator provides prominent operator control and visual indication.
- 110–130 V AC/DC illumination for compatible industrial control systems.
- Integrated 1NO contact for normally open switching functions.
- IP67 / IP69K protection supports demanding industrial environments.
- ABB Compact all-in-one construction helps reduce installation time and simplify component selection.
Key Features
- ABB CP3 Compact pushbutton range.
- Momentary switching action.
- Extended green illuminated actuator.
- LED illumination.
- 110–130 V AC/DC illumination voltage.
- 1 normally open (1NO) contact.
- Black plastic bezel.
- Round illuminated lens.
- 22 mm mounting-hole diameter.
- Screw-terminal electrical connection.
- IP67 / IP69K protection.
- Compact all-in-one construction for efficient panel installation.
Illuminated Momentary Control for Industrial Machinery
Illuminated momentary pushbuttons combine temporary electrical switching with visual indication at the operator interface. The ABB CP3-12G-10 provides a single normally open contact that changes state while the extended actuator is pressed and returns to its normal state when released, while the green LED illumination provides clear visual identification.
The ABB Compact pilot device range uses an integrated all-in-one construction designed to simplify selection and installation. With its 110–130 V AC/DC illumination, extended green operator, 1NO contact, screw connection and robust ingress protection, the CP3-12G-10 is well suited to industrial operator stations and machinery control panels.
Typical Applications
- Industrial machinery control panels.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets.
- Process and production equipment.
- Conveyor and material handling controls.
- OEM machinery and automation systems.
