Why Choose the ABB CP3-30R-01 Compact Pushbutton?

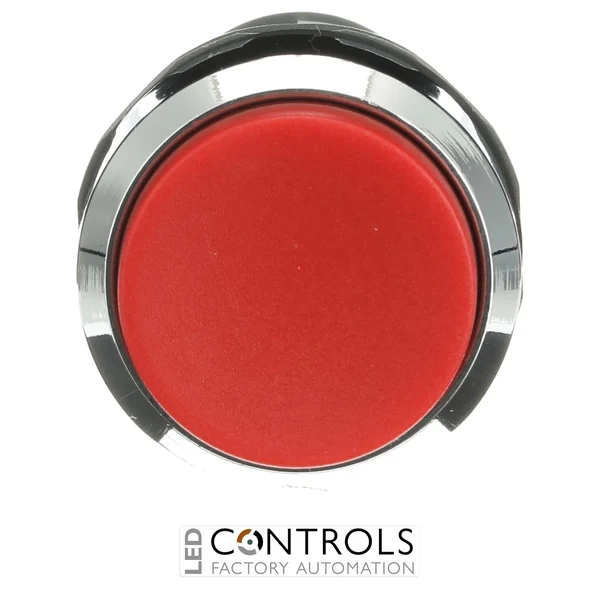

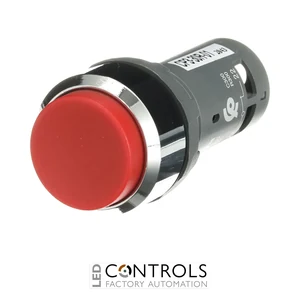

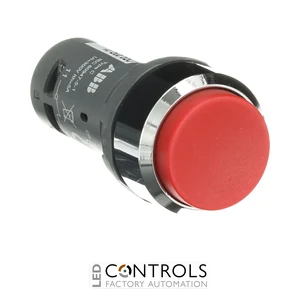

The ABB CP3-30R-01 is a compact red non-illuminated momentary pushbutton designed for operator control in industrial machinery, electrical panels and automation systems. As part of the ABB CP3 Compact pushbutton range, it combines a robust projecting actuator with an integrated contact arrangement for space-efficient installation.
This pushbutton features momentary spring-return operation and incorporates 1 normally closed (1 NC) contact. Its red projecting operator provides clear visual identification, while the chrome-plated metal bezel gives the CP3-30 configuration a durable industrial front-panel finish.
Designed for ABB's 22 mm pilot-device system, the CP3-30R-01 provides dependable switching for machine controls and operator stations. High front protection ratings and screw-terminal connections make it suitable for demanding industrial environments where reliable manual command functionality is required.
Key Advantages
- Compact red projecting momentary pushbutton for industrial control applications.
- 1 normally closed contact for control-circuit switching.
- Momentary spring-return operation automatically restores the operator after release.
- Non-illuminated design for straightforward manual command functions.
- Chrome-plated metal bezel provides a robust industrial front-panel finish.
- Designed for the standard 22 mm pilot-device mounting system.
- High front protection supports installation in demanding machinery and panel environments.
Key Features
- ABB CP3 Compact pushbutton series.
- Red projecting actuator.
- Momentary operation.
- 1 normally closed (1 NC) contact.
- Non-illuminated operator.
- Chrome-plated metal bezel.
- 22 mm pilot-device mounting format.
- Screw-terminal electrical connections.
- High degree of front protection for industrial installations.
- Compact integrated construction for efficient panel assembly.
Reliable Operator Control for Industrial Machinery
Momentary pushbuttons provide a temporary electrical command while the operator is actuated and automatically return to their normal position when released. With its red actuator and normally closed contact, the ABB CP3-30R-01 is suitable for control functions where a clearly identifiable spring-return operator is required.
The ABB Compact pilot-device range is engineered for reliable, space-efficient control-panel installation. Its standard 22 mm format, robust front protection and integrated contact arrangement allow the CP3-30R-01 to be incorporated into machine interfaces, operator stations and industrial automation equipment.
Typical Applications
- Industrial machinery control panels.
- Operator control stations and consoles.
- Factory automation equipment.
- Motor and process control circuits.
- Production and packaging machinery.
- Material handling and conveyor systems.
