Why Choose the ABB CP3-30W-11 Compact Pushbutton?
The ABB CP3-30W-11 is a compact momentary industrial pushbutton designed for machinery, automation systems and electrical control panels. Part of the ABB CP3 Compact pushbutton range and ABB product group 311530-Compact Pushbuttons, its all-in-one construction combines the operator and electrical contacts to support efficient panel installation.

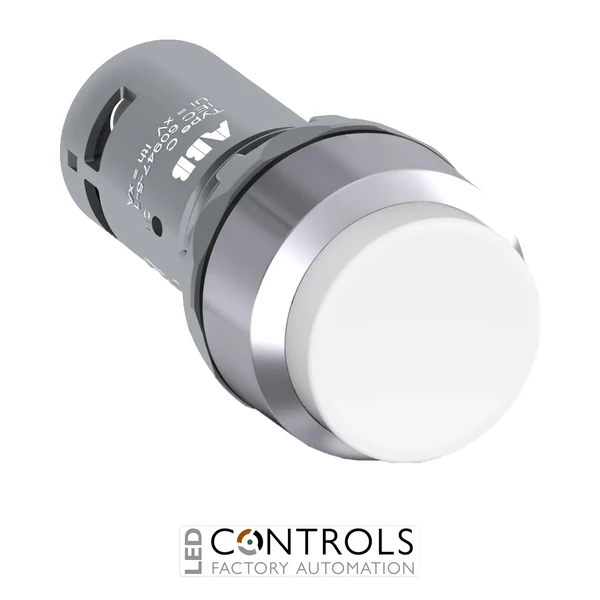

The CP3-30W-11 features a white, extended, non-illuminated actuator surrounded by a durable chrome metal bezel. Its momentary spring-return action operates integrated 1 normally open (NO) and 1 normally closed (NC) contact, providing complementary switching functions from a single compact operator.
Designed for standard 22 mm panel mounting, the CP3-30W-11 uses screw connections for straightforward industrial wiring. Its IP67 and IP69K protection, robust metal bezel and compact dimensions make it suitable for demanding industrial control-panel, machinery and operator-interface applications.
Key Advantages
- Compact momentary pushbutton for industrial machinery and automation control.
- White extended actuator provides clear identification and convenient operation.
- Durable chrome metal bezel provides a robust operator interface.
- Integrated 1NO + 1NC contacts provide complementary switching functions.
- Spring-return operation automatically restores the normal contact states after release.
- IP67 / IP69K protection supports use in demanding industrial environments.
- Standard 22 mm panel mounting simplifies integration into control panels and operator stations.
Key Features
- ABB CP3 Compact pushbutton series.
- Momentary / spring-return switching function.
- 1 normally open (NO) + 1 normally closed (NC) contact.
- White extended pushbutton actuator.
- Chrome metal bezel.
- Non-illuminated operator design.
- 22 mm panel mounting.
- Screw connection for electrical wiring.
- Rated voltage of 300 V.
- Compact all-in-one construction for efficient industrial panel installation.
- Unit weight of approximately 0.036 kg.
Reliable Momentary Control for Industrial Machinery
Momentary pushbuttons provide operators with a direct method of issuing temporary commands to machinery and electrical control systems. The ABB CP3-30W-11 uses a spring-return mechanism, so the actuator automatically returns to its normal position when released rather than remaining mechanically latched.
The integrated 1NO + 1NC contact arrangement provides both normally open and normally closed switching functions from a single operator. Combined with its extended white actuator, chrome metal bezel, standard 22 mm mounting format and high ingress protection, the CP3-30W-11 is well suited to industrial control panels, operator stations and automated machinery.
Typical Applications
- Industrial machinery control panels.
- Momentary command and control circuits.
- Factory automation equipment.
- Machine operator stations.
- Production and processing machinery.
- Conveyor and material handling systems.
- Electrical control cabinets and operator interfaces.
