Why Choose the ABB CP4-10R-11 Compact Pushbutton?
The ABB CP4-10R-11 is a compact maintained industrial pushbutton designed for machinery, automation systems and electrical control panels. Part of the ABB CP4 Compact pushbutton range and ABB product group 311530-Compact Pushbuttons, its all-in-one construction combines the operator and electrical contacts to support efficient panel installation.

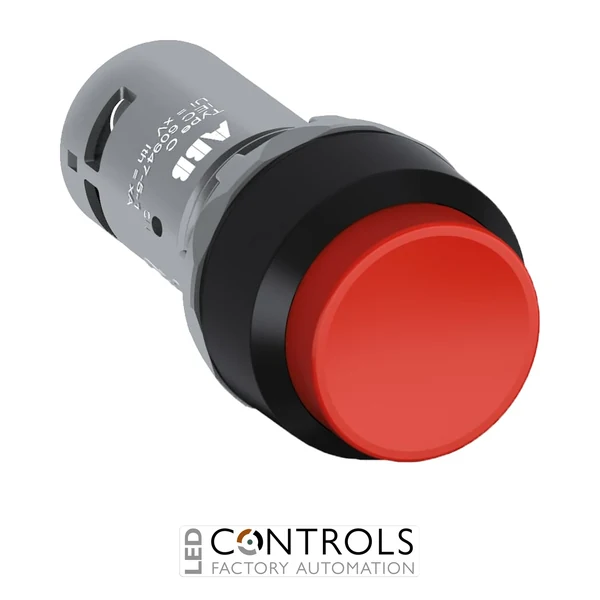

The CP4-10R-11 features a red, extended, non-illuminated actuator with a black plastic bezel. Its maintained switching action operates integrated 1 normally open (NO) and 1 normally closed (NC) contact, providing complementary switching functions while retaining the selected operating state.
Designed for standard 22 mm panel mounting, the CP4-10R-11 uses screw connections for secure industrial wiring. Its IP67 and IP69K protection, compact construction and robust all-in-one design make it suitable for demanding industrial control-panel, machinery and operator-interface applications.
Key Advantages
- Compact maintained pushbutton for industrial machinery and automation control.
- Red extended actuator provides clear identification and convenient operation.
- Integrated 1NO + 1NC contacts provide complementary switching functions.
- Maintained / latching operation retains the selected switching state after the actuator is released.
- IP67 / IP69K protection supports use in demanding industrial environments.
- Standard 22 mm panel mounting simplifies integration into control panels and operator stations.
Key Features
- ABB CP4 Compact pushbutton series.
- Maintained / latching switching function.
- 1 normally open (NO) + 1 normally closed (NC) contact.
- Red extended pushbutton actuator.
- Black plastic bezel.
- Non-illuminated operator design.
- 22 mm panel mounting.
- Screw connection for electrical wiring.
- Electrical rating of 300 V.
- Compact all-in-one construction for efficient industrial panel installation.
- Unit weight of 0.022 kg.
Maintained Control for Industrial Machinery
Maintained pushbuttons are designed to retain their selected switching state after the operator releases the actuator. Unlike a momentary spring-return pushbutton, the ABB CP4-10R-11 uses a latching switching function, making it suitable for applications where an operator command needs to remain active until the switching state is changed.
The integrated 1NO + 1NC contact arrangement provides both normally open and normally closed switching functions from a single operator. Combined with its extended red actuator, black plastic bezel, standard 22 mm mounting format and high ingress protection, the CP4-10R-11 provides a compact solution for industrial control panels, operator stations and automated machinery.
Typical Applications
- Industrial machinery control panels.
- Maintained command and control circuits.
- Machine operator stations.
- Factory automation equipment.
- Production and processing machinery.
- Mode and function selection circuits.
- Electrical control cabinets and operator interfaces.
