Why Choose the ABB CP4-10G-11 Pushbutton?
The ABB CP4-10G-11 is a compact maintained pushbutton designed for dependable operator control in industrial machinery, electrical panels and automation systems. As part of the ABB Compact pilot device range, it combines an extended operator and integrated switching contacts in an efficient all-in-one design for straightforward panel installation.

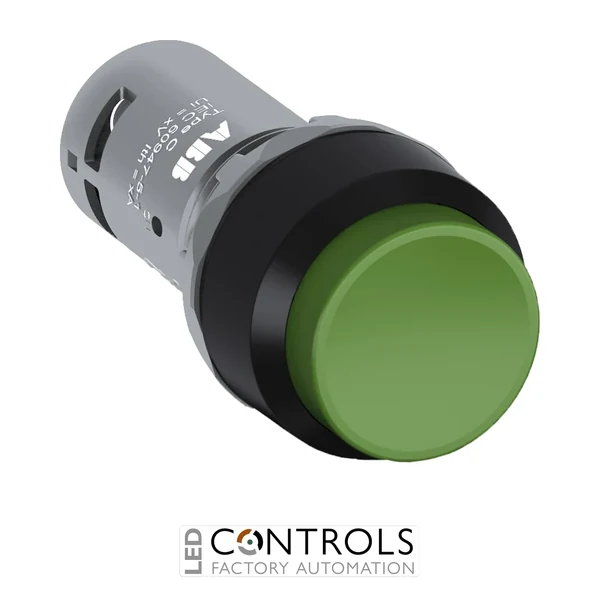

This pushbutton features a green extended actuator with a black plastic bezel and non-illuminated construction. Its maintained operating action retains the selected switching state after the actuator is operated, making it suitable for control functions where the electrical command must remain active until the operator changes the state again.
The CP4-10G-11 incorporates 1 normally open (1NO) and 1 normally closed (1NC) contact, providing complementary switching functions from a single operator. It is rated for operation up to 300 V and provides IP66, IP67 and IP69K front protection, supporting reliable use in demanding industrial environments.
Key Advantages
- Compact maintained pushbutton designed for industrial control applications.
- Green extended actuator provides a prominent and clearly identifiable operator interface.
- Integrated 1NO + 1NC contact arrangement supports complementary switching functions.
- Maintained switching action retains the selected contact state after operation.
- IP66 / IP67 / IP69K front protection supports demanding industrial installations.
- ABB Compact all-in-one construction helps reduce installation time and simplify component selection.
Key Features
- ABB CP4 Compact pushbutton range.
- Maintained switching action.
- Extended green pushbutton actuator.
- 1 normally open (1NO) + 1 normally closed (1NC) contact.
- Non-illuminated construction.
- Black plastic bezel.
- 300 V rated insulation voltage.
- 300 V maximum rated operational voltage.
- 6 kV rated impulse withstand voltage.
- 50 / 60 Hz rated frequency.
- Screw terminals with 0.8 N·m tightening torque.
- IP66 / IP67 / IP69K front protection and IP20 terminal protection.
- Mechanical durability of 0.5 million operations.
Reliable Maintained Control for Industrial Machinery
Maintained pushbuttons retain their selected switching state after the operator actuates the button. The ABB CP4-10G-11 provides both a normally open and a normally closed contact, enabling complementary control functions from a single maintained operator in machinery, process equipment and industrial automation circuits.
The ABB Compact pilot device range combines reliable switching with efficient all-in-one installation. With its extended green actuator, 1NO + 1NC contact arrangement, screw terminals, broad operating temperature range and robust front-face ingress protection, the CP4-10G-11 provides a practical maintained operator-control solution for demanding industrial equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets.
- Process and production equipment.
- Conveyor and material handling controls.
- OEM machinery and automation systems.
