Why Choose the ABB CP4-10Y-11 Pushbutton?
The ABB CP4-10Y-11 is a compact maintained pushbutton designed for dependable operator control in industrial machinery, electrical panels and automation systems. As part of the ABB Compact pilot device range, it combines an extended operator and integrated switching contacts in an efficient all-in-one design for straightforward panel installation.

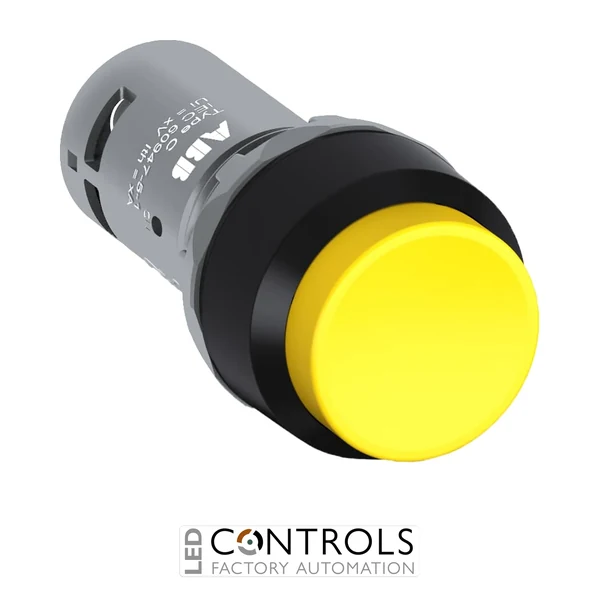

This pushbutton features a yellow extended actuator with a black plastic bezel and non-illuminated construction. Its maintained, latching operating action retains the selected switching state after the actuator is operated, making it suitable for control functions where the command must remain active until the operator changes the state again.
The CP4-10Y-11 incorporates 1 normally open (1NO) and 1 normally closed (1NC) contact, providing complementary switching functions from a single operator. Its 22 mm panel mounting, screw connection and IP66 / IP67 / IP69K protection make it a robust operator-control solution for demanding industrial environments.
Key Advantages
- Compact maintained pushbutton designed for industrial control applications.
- Yellow extended actuator provides a prominent and clearly identifiable operator interface.
- Integrated 1NO + 1NC contact arrangement supports complementary switching functions.
- Maintained latching action retains the selected switching state after operation.
- IP66 / IP67 / IP69K protection supports demanding industrial installations.
- ABB Compact all-in-one construction helps reduce installation time and simplify component selection.
Key Features
- ABB CP4 Compact pushbutton range.
- Maintained / latching switching action.
- Extended yellow pushbutton actuator.
- 1 normally open (1NO) + 1 normally closed (1NC) contact.
- Non-illuminated construction.
- Black plastic bezel.
- 300 V rating.
- 22 mm mounting-hole diameter.
- Screw-terminal electrical connection.
- IP66 / IP67 / IP69K protection.
- Operating temperature range of -25 to +70 °C.
- Approximate unit weight of 0.022 kg.
Reliable Maintained Control for Industrial Machinery
Maintained pushbuttons retain their selected switching state after the operator actuates the button. The ABB CP4-10Y-11 provides both a normally open and a normally closed contact, enabling complementary switching functions from a single maintained operator in machinery, process equipment and industrial automation circuits.
The ABB Compact pilot device range combines reliable switching with efficient all-in-one installation. With its extended yellow actuator, 1NO + 1NC contact arrangement, screw connection and robust ingress protection, the CP4-10Y-11 provides a practical maintained operator-control solution for industrial machinery and automation equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation systems.
- Machine operator stations.
- Electrical control cabinets.
- Process and production equipment.
- Conveyor and material handling controls.
- OEM machinery and automation systems.
