Why Choose the ABB CP4-11R-10 Compact Pushbutton?

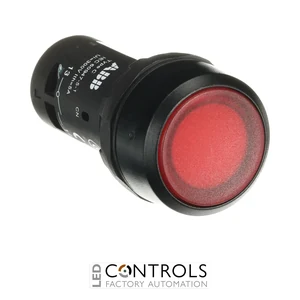

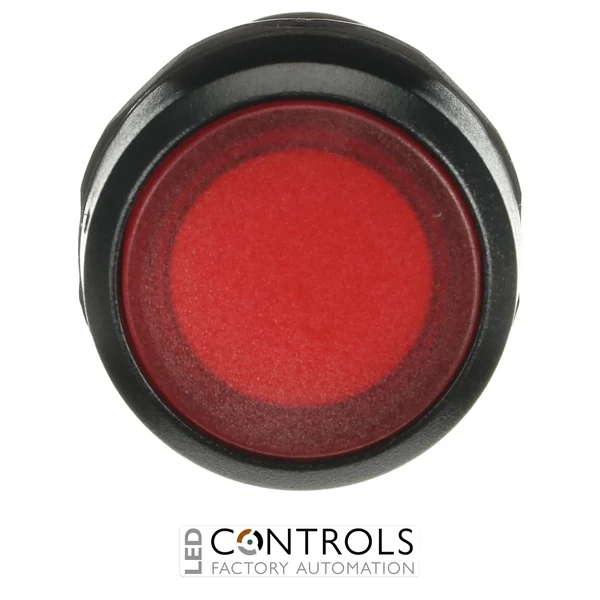

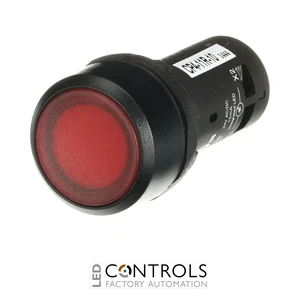

The ABB CP4-11R-10 is a compact red illuminated maintained extended pushbutton designed for operator control and visual signalling in industrial machinery, electrical panels and automation systems. As part of the ABB CP4 Compact pushbutton range, it combines an extended illuminated operator, maintained switching mechanism and integrated contact in a space-efficient panel-mounted device.
This pushbutton features a red illuminated operator, maintained operation and 1 normally open (1 NO) contact. The maintained mechanism retains its switching state after actuation, making the device suitable for commands that need to remain active without continuous pressure on the operator.
The CP4-11R-10 incorporates 24 V AC/DC LED illumination and a black plastic bezel. Designed around ABB's compact pilot-device format, it provides a practical combination of control and indication for machine interfaces, operator stations and industrial automation panels.
Key Advantages
- Compact illuminated maintained pushbutton for industrial control applications.
- Red extended illuminated operator provides clear visual identification.
- Maintained switching action retains the selected state after actuation.
- Integrated 1 normally open (1 NO) contact.
- 24 V AC/DC LED illumination suitable for common industrial control supplies.
- Black plastic bezel provides a compact industrial panel appearance.
- Combines manual control and visual indication in a single pilot device.
Key Features
- ABB CP4 Compact pushbutton series.
- Illuminated extended pushbutton.
- Red operator colour.
- Maintained operation.
- 1 normally open (1 NO) contact.
- 24 V AC/DC LED illumination.
- Black plastic bezel.
- 300 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- Designed for panel mounting in industrial operator interfaces.
Reliable Illuminated Control for Industrial Machinery
Illuminated maintained pushbuttons combine manual switching with visual indication while retaining their selected switching state after actuation. This makes the ABB CP4-11R-10 suitable for control functions where both persistent command status and a clearly visible red indication are required.
The CP4-11R-10 uses 24 V AC/DC LED illumination and an integrated normally open contact, allowing straightforward integration into industrial control circuits. Its compact construction is well suited to machine interfaces, operator stations and automation panels where panel space and clear control identification are important.
Typical Applications
- Industrial machinery control panels.
- Operator control stations and consoles.
- Factory automation equipment.
- Motor and process control systems.
- Production and packaging machinery.
- Material handling and conveyor systems.
