Why Choose the ABB CP4-11Y-10 Compact Pushbutton?
The ABB CP4-11Y-10 is a compact maintained illuminated industrial pushbutton designed for machinery, automation systems and electrical control panels. Part of the ABB CP4 Compact pushbutton range and ABB product group 311530-Compact Pushbuttons, it combines the operator, LED illumination and electrical contact in a space-efficient complete assembly.

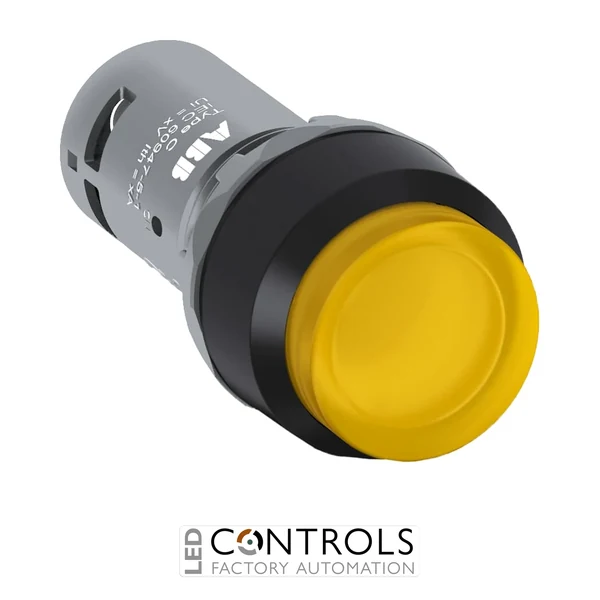

The CP4-11Y-10 features a yellow illuminated extended actuator with a black plastic bezel. Its maintained switching action operates an integrated 1 normally open (NO) contact, while the built-in LED is designed for a 24 V AC/DC supply, combining visual indication and operator control in one device.
Designed for standard 22 mm panel mounting, the CP4-11Y-10 uses screw connections for secure industrial wiring. Its IP66, IP67 and IP69K front protection, operating temperature range of -25 to +70 °C and compact 30 × 30 × 55 mm dimensions make it suitable for demanding industrial control-panel and operator-interface applications.
Key Advantages
- Compact maintained illuminated pushbutton for industrial machinery and automation control.
- Yellow illuminated extended actuator combines operator input with clear visual indication.
- Integrated 1 normally open (NO) contact for command and signalling circuits.
- 24 V AC/DC LED illumination suits commonly used industrial control supplies.
- Maintained switching function retains the selected operating state after actuation.
- High front protection with IP66, IP67 and IP69K ratings.
- Standard 22 mm panel mounting supports straightforward integration into operator stations and control panels.
Key Features
- ABB CP4 Compact pushbutton series.
- Maintained switching function.
- 1 normally open (NO) contact.
- Yellow illuminated extended actuator.
- LED illumination.
- 24 V AC/DC rated illumination.
- Black plastic bezel.
- 22 mm panel mounting.
- Screw connection for electrical wiring.
- Rated insulation voltage of 300 V.
- Rated impulse withstand voltage of 6 kV.
Maintained Illuminated Control for Industrial Machinery
Maintained illuminated pushbuttons combine operator control and visual indication within a single panel-mounted device. The ABB CP4-11Y-10 uses a maintained switching function, allowing the selected switching state to remain active after actuation, while its yellow LED provides a clearly visible indication at the operator interface.
The integrated 1NO contact provides a normally open switching path, while the 24 V AC/DC LED illumination is compatible with widely used industrial control supplies. Combined with its extended actuator, standard 22 mm mounting format and high front protection, the CP4-11Y-10 provides a compact solution for machinery, automation panels and operator stations.
Typical Applications
- Industrial machinery control panels.
- Illuminated maintained command circuits.
- Machine operator stations.
- Factory automation equipment.
- Production and processing machinery.
- Conveyor and material handling systems.
- Electrical control cabinets requiring 24 V AC/DC illuminated controls.
