Why Choose the ABB CP4-11R-01 Pushbutton?
The ABB CP4-11R-01 is a compact illuminated maintained pushbutton designed for industrial control panels, machinery and automation applications. Identified by ABB order code 1SFA619103R1141, it forms part of the ABB Compact Pushbuttons range and combines the operator, illumination and contact functions in an efficient all-in-one design.

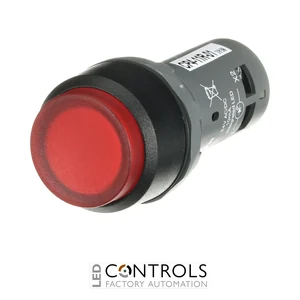

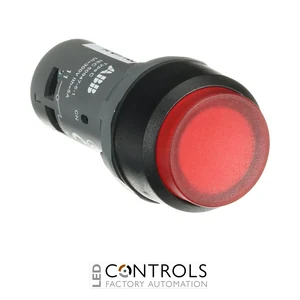

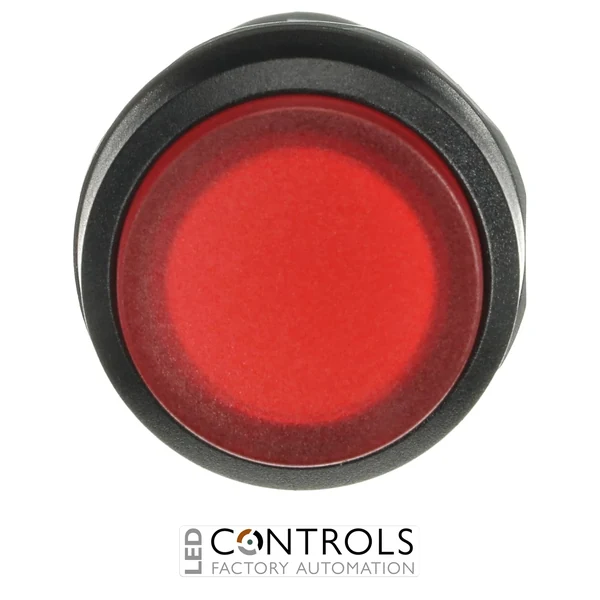

This pushbutton features a red extended operator, black plastic bezel and integrated illumination for clear visual identification in industrial control systems. Its maintained switching action retains the selected state after operation, making it suitable for control functions where a latched operator position is required.
The CP4-11R-01 incorporates one normally closed (1NC) contact with no normally open contacts and uses 24 V AC/DC illumination. Designed for standard 22 mm panel mounting, the compact construction helps simplify installation while providing a high level of resistance to dust and water in demanding industrial environments.
Key Advantages
- Compact all-in-one illuminated pushbutton for industrial control applications.
- Maintained switching action retains the selected operator position.
- Highly visible red extended illuminated operator.
- Integrated 1NC contact configuration.
- 24 V AC/DC illumination suitable for common industrial control voltages.
- Standard 22 mm panel mounting simplifies integration into control panels and machinery.
- Robust construction provides high resistance to dust and water.
Key Features
- ABB Compact Pushbuttons range.
- CP4-11R-01 maintained illuminated pushbutton.
- Red extended operator with illumination.
- Black plastic bezel.
- 1 normally closed (1NC) contact and 0 normally open contacts.
- 24 V AC/DC rated illumination.
- 22 mm mounting-hole diameter.
- Screw-terminal electrical connection.
- Compact integrated design for rapid panel installation.
Reliable Control for Industrial Machinery
Industrial pushbuttons provide operators with a simple and dependable interface for controlling machinery and automated processes. The ABB CP4-11R-01 combines a maintained switching mechanism with an illuminated red operator, helping provide both tactile operation and clear visual indication at the control panel.
ABB's Compact range uses an integrated all-in-one construction intended to reduce installation time and simplify component selection. The CP4-11R-01 is therefore well suited to machine builders, panel builders and industrial automation engineers requiring a compact operator for standard 22 mm control-panel openings.
Typical Applications
- Industrial machinery control panels.
- Factory automation equipment.
- Production and assembly machinery.
- Conveyor and material handling systems.
- Process control panels.
- OEM machinery and equipment.
- Electrical control cabinets and operator stations.
