Why Choose the ABB CP4-30R-11 Compact Pushbutton?

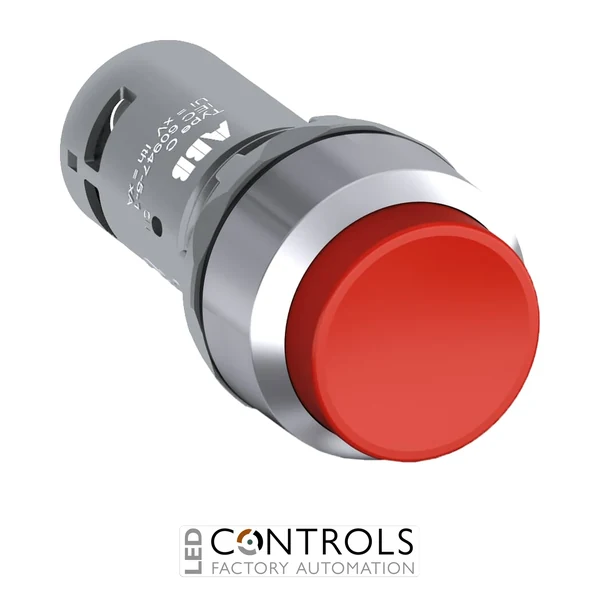

The ABB CP4-30R-11 is a compact red non-illuminated maintained extended pushbutton designed for operator control in industrial machinery, electrical panels and automation systems. As part of the ABB CP4 Compact pushbutton range, it combines the operator and switching contacts in an efficient all-in-one assembly for straightforward panel installation.
This pushbutton features maintained operation, a red extended actuator and 1 normally open plus 1 normally closed (1 NO + 1 NC) contact. The maintained mechanism retains its switching state after actuation, making the CP4-30R-11 suitable for control functions where a selected command must remain active until deliberately changed.
The CP4-30R-11 features a robust chrome-plated metal bezel and is designed for a standard 22 mm mounting hole. Screw-terminal connections simplify control-panel wiring, while IP67/IP69K front protection provides high resistance to dust and water for demanding industrial environments.
Key Advantages
- Compact maintained extended pushbutton for industrial control applications.
- Red operator provides clear visual identification.
- Maintained switching action retains the selected state after actuation.
- Integrated 1 NO + 1 NC contact configuration provides complementary switching functions.
- Durable chrome-plated metal bezel for industrial panel installations.
- Standard 22 mm panel mounting simplifies integration.
- IP67/IP69K front protection provides high resistance to dust and water.
Key Features
- ABB CP4 Compact pushbutton series.
- Maintained extended pushbutton.
- Red operator colour.
- Non-illuminated design.
- 1 normally open + 1 normally closed contact.
- 300 V rated insulation voltage.
- 22 mm mounting-hole diameter.
- Chrome-plated metal bezel.
- Screw-terminal electrical connection.
- IP67/IP69K front protection.
Reliable Maintained Control for Industrial Machinery
Maintained pushbuttons retain their switching state after actuation rather than automatically returning when released. The ABB CP4-30R-11 combines this functionality with complementary normally open and normally closed contacts, allowing two related control-circuit states to be switched from a single operator.
ABB's Compact pilot-device range uses an all-in-one construction designed to simplify product selection and installation. The CP4-30R-11 combines a standard 22 mm mounting format, robust chrome metal bezel and high environmental protection for dependable operation in industrial operator interfaces and machine-control panels.
Typical Applications
- Industrial machinery control panels.
- Operator control stations and consoles.
- Factory automation equipment.
- Motor and process control systems.
- Production and packaging machinery.
- Material handling and conveyor systems.
