Why Choose the ABB CPM3-10G-11 Mushroom Pushbutton?

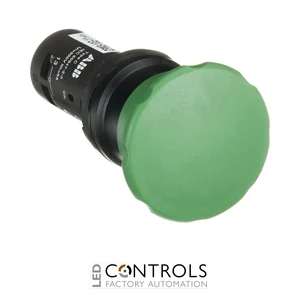

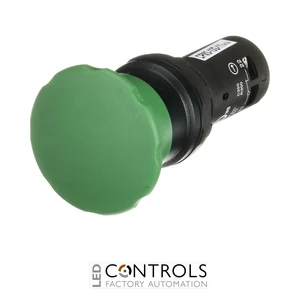

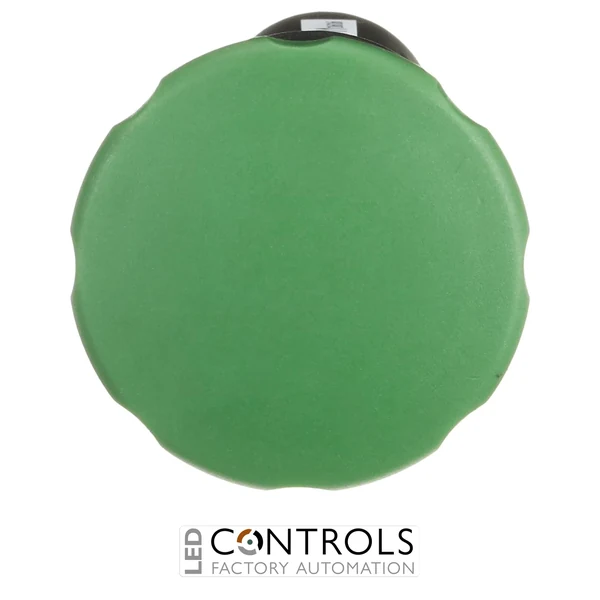

The ABB CPM3-10G-11 is a compact green mushroom pushbutton designed for manual command and control functions in industrial machinery, electrical panels and automation systems. Part of ABB's Compact pilot-device range, it combines a prominent mushroom operator with integrated contacts in an efficient all-in-one assembly.
This model features a 40 mm green mushroom operator, momentary spring-return operation and 1 normally open plus 1 normally closed (1 NO + 1 NC) contact. The large actuator provides an easily accessible operating surface, while the complementary contacts support both normally open and normally closed control functions from a single device.
The CPM3-10G-11 is non-illuminated and features a black plastic bezel, screw-terminal connection and standard 22 mm panel mounting. With IP66/IP67/IP69K front protection, it provides a high level of resistance to dust and water for dependable operation in demanding industrial environments.
Key Advantages
- Large 40 mm green mushroom operator for prominent manual control.
- Momentary spring-return action automatically returns after release.
- Integrated 1 NO + 1 NC contact configuration provides complementary switching.
- Standard 22 mm panel mounting supports straightforward installation.
- IP66/IP67/IP69K front protection provides high resistance to dust and water.
- Black plastic bezel and screw terminals support practical industrial installation.
- ABB Compact all-in-one construction helps reduce installation time and panel assembly complexity.
Key Features
- ABB CPM3 Compact mushroom pushbutton series.
- 40 mm mushroom actuator.
- Green operator colour.
- Momentary, spring-return operation.
- Non-illuminated design.
- 1 normally open + 1 normally closed contact.
- 300 V rated insulation voltage.
- 22 mm mounting-hole diameter.
- Black plastic bezel.
- Screw-terminal electrical connection.
- IP66/IP67/IP69K front protection.
Prominent Momentary Control for Industrial Machinery
Mushroom pushbuttons provide a larger operating surface than conventional pushbuttons, making them useful where a prominent and readily accessible manual command is required. The ABB CPM3-10G-11 combines a 40 mm green mushroom head with momentary spring-return operation for clear and practical machine-control functionality.
Its integrated 1 NO + 1 NC contacts provide complementary switching from one operator, while the compact all-in-one construction simplifies panel installation. The standard 22 mm mounting format and IP66/IP67/IP69K front protection make the CPM3-10G-11 suitable for a wide range of demanding industrial operator interfaces.
Typical Applications
- Industrial machinery control panels.
- Operator control stations and consoles.
- Factory automation equipment.
- Motor and process control systems.
- Production and packaging machinery.
- Material handling and conveyor systems.
