Why Choose the ABB CPM3-10Y-11 Mushroom Pushbutton?
The ABB CPM3-10Y-11 is a compact and robust non-illuminated mushroom pushbutton designed for industrial machinery, control panels and automation applications. Identified by ABB order code 1SFA619126R1073, it forms part of the ABB Compact Pushbuttons range and provides an integrated operator and contact solution for reliable machine control.

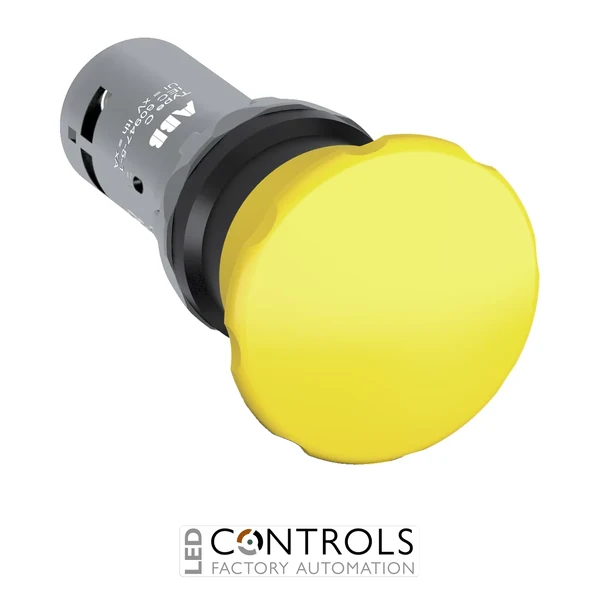

This pushbutton features a highly visible yellow 40 mm mushroom operator with a black plastic bezel. Its momentary, spring-return action means the operator automatically returns to its normal position after actuation, making it suitable for command, reset and other temporary control functions where a large, easily operated pushbutton is beneficial.
The CPM3-10Y-11 incorporates one normally open and one normally closed (1NO+1NC) contact and uses screw-terminal electrical connections. Designed for standard 22 mm panel mounting, its compact all-in-one construction simplifies installation while providing IP66, IP67 and IP69K front protection for demanding industrial environments.
Key Advantages
- Large 40 mm mushroom operator provides easy and highly visible actuation.
- Momentary spring-return operation automatically returns after release.
- Highly visible yellow operator for clear identification on machinery and control panels.
- Integrated 1NO+1NC contact configuration provides flexible control-circuit switching.
- IP66, IP67 and IP69K front protection provides excellent resistance to dust and water.
- Compact all-in-one construction helps reduce installation time and component requirements.
- Standard 22 mm panel mounting simplifies integration into industrial control equipment.
Key Features
- ABB Compact Pushbuttons range.
- CPM3-10Y-11 mushroom pushbutton.
- Momentary spring-return action.
- Yellow 40 mm mushroom operator.
- Black plastic bezel.
- 1 normally open (1NO) and 1 normally closed (1NC) contact.
- Non-illuminated design.
- 300 V rated insulation voltage.
- IP66, IP67 and IP69K front protection.
- 22 mm panel mounting.
- Screw-terminal electrical connections.
- Compact integrated construction for straightforward panel installation.
Reliable Mushroom Pushbutton Control for Industrial Machinery
Mushroom pushbuttons provide a large operating surface that makes control functions easy to identify and actuate on industrial machinery. The ABB CPM3-10Y-11 combines a yellow 40 mm mushroom head with momentary spring-return operation and complementary 1NO+1NC contacts, allowing two contact states to change when the operator is pressed.
The ABB Compact range is designed as an efficient all-in-one solution for machine builders, panel builders and automation engineers. The CPM3-10Y-11 combines integrated contacts, screw terminals and high front-side environmental protection with standard 22 mm mounting, helping simplify installation in modern industrial control systems.
Typical Applications
- Industrial machinery and equipment.
- Factory automation and production systems.
- Conveyor and material handling systems.
- Process and manufacturing machinery.
- Machine control and reset functions.
- Electrical control panels and operator stations.
- OEM machinery requiring a large, highly visible momentary operator.
