Why Choose the ABB CPM3-10B-11 Mushroom Pushbutton?
The ABB CPM3-10B-11 is a compact and robust non-illuminated mushroom pushbutton designed for industrial machinery, control panels and automation applications. Identified by ABB order code 1SFA619126R1076, it forms part of the ABB Compact Pushbuttons range and provides an integrated operator and contact solution for reliable machine control.

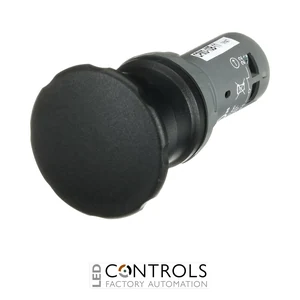

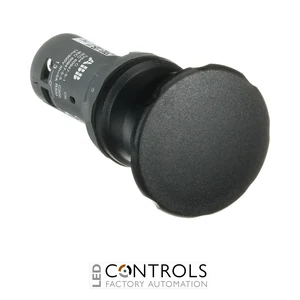

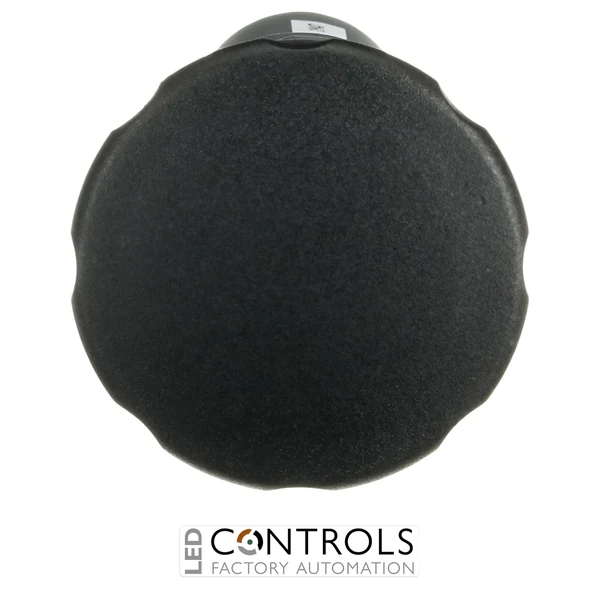

This pushbutton features a black 40 mm mushroom operator with a black plastic bezel. Its momentary, spring-return action means the operator automatically returns to its normal position after actuation, making it suitable for command, reset and other temporary control functions where a large, easily operated pushbutton is beneficial.
The CPM3-10B-11 incorporates one normally open and one normally closed (1NO+1NC) contact and uses screw-terminal electrical connections. Designed for standard 22 mm panel mounting, its compact all-in-one construction simplifies installation while providing a high level of dust and water resistance for demanding industrial environments.
Key Advantages
- Large 40 mm mushroom operator provides easy and positive actuation.
- Momentary spring-return operation automatically returns after release.
- Black mushroom operator provides a clear industrial control interface.
- Integrated 1NO+1NC contact configuration provides flexible control-circuit switching.
- High level of dust and water resistance for demanding operating environments.
- Compact all-in-one construction helps reduce installation time and component requirements.
- Standard 22 mm panel mounting simplifies integration into industrial control equipment.
Key Features
- ABB Compact Pushbuttons range.
- CPM3-10B-11 mushroom pushbutton.
- Momentary spring-return action.
- Black 40 mm mushroom operator.
- Black plastic bezel.
- 1 normally open (1NO) and 1 normally closed (1NC) contact.
- Non-illuminated design.
- 300 V rated voltage.
- 22 mm panel mounting.
- Screw-terminal electrical connections.
- Compact integrated construction for straightforward panel installation.
Reliable Mushroom Pushbutton Control for Industrial Machinery
Mushroom pushbuttons provide a large operating surface that makes control functions easy to locate and actuate on industrial machinery. The ABB CPM3-10B-11 combines a black 40 mm mushroom head with momentary spring-return operation and complementary 1NO+1NC contacts, allowing both contact states to change when the operator is pressed.
The ABB Compact range is designed as an efficient all-in-one solution for machine builders, panel builders and automation engineers. The CPM3-10B-11 combines integrated contacts, screw terminals and robust construction with standard 22 mm mounting, helping simplify installation in modern industrial control systems.
Typical Applications
- Industrial machinery and equipment.
- Factory automation and production systems.
- Conveyor and material handling systems.
- Process and manufacturing machinery.
- Machine control and reset functions.
- Electrical control panels and operator stations.
- OEM machinery requiring a large momentary operator.
