Why Choose the ABB CP9-1005 Pushbutton?
The ABB CP9-1005 is a compact non-illuminated momentary pushbutton designed for reliable operator control in industrial machinery, control panels and automation systems. As part of the ABB Compact pushbutton range, it provides an all-in-one operator and contact solution that helps simplify panel assembly and installation.

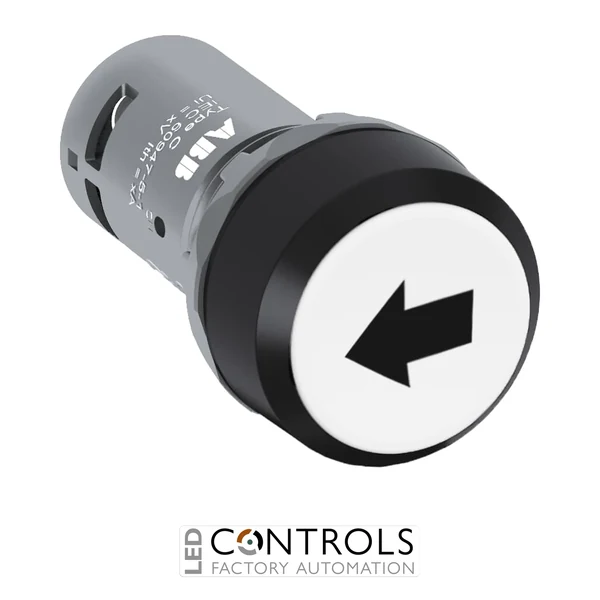

This pushbutton features a white flush actuator with a left-arrow symbol, a black plastic bezel and an integrated 1 normally open + 1 normally closed (1 NO + 1 NC) contact configuration. Its momentary action returns the actuator after release, making it suitable for control commands that require a temporary electrical signal.
Designed for standard 22 mm panel mounting, the CP9-1005 combines compact dimensions with robust industrial protection. Its IP67 / IP69K front protection and screw-terminal connection make it well suited to machinery, operator stations and industrial control environments. ABB order code 1SFA619199R1005 identifies this exact pushbutton.
Key Advantages
- Compact momentary pushbutton for industrial operator control.
- White flush actuator with left-arrow marking for clear command identification.
- Integrated 1 NO + 1 NC contacts provide complementary switching functions.
- Non-illuminated all-in-one design simplifies panel installation.
- Standard 22 mm mounting format for industrial control panels.
- IP67 / IP69K protection supports use in demanding industrial environments.
Key Features
- ABB Compact pushbutton range.
- White flush pushbutton actuator.
- Left-arrow actuator marking.
- Momentary switching action.
- 1 normally open + 1 normally closed (1 NO + 1 NC) contacts.
- Non-illuminated design.
- 22 mm panel mounting.
- Screw-terminal connection.
- 300 V maximum rated operational voltage.
- Compact all-in-one construction for efficient control-panel assembly.
Reliable Operator Control for Industrial Machinery
Industrial pushbuttons provide a direct interface between operators and electrical control circuits. The ABB CP9-1005 combines normally open and normally closed contacts in one compact device, allowing complementary circuit states to be controlled from a single momentary actuator. Its left-arrow marking provides an immediately recognisable visual command for applications where directional identification is required.
The ABB Compact range is engineered around an all-in-one design that reduces the number of separate components required behind the panel. Together with standard 22 mm mounting, screw-terminal connections and high ingress protection, this makes the CP9-1005 a practical choice for industrial machinery, control stations and OEM automation equipment.
Typical Applications
- Industrial machinery control panels.
- Directional and movement control commands.
- Operator control stations and consoles.
- Conveyor and material handling systems.
- Production and assembly machinery.
- Process control and automation equipment.
- OEM machinery and electrical control systems.
