Why Choose the ABB C2SS1-10B-10 Compact Selector Switch?
The ABB C2SS1-10B-10 is a compact and reliable 2-position maintained selector switch designed for industrial machinery, control panels and automation systems. Identified by ABB order code 1SFA619200R1016, it forms part of the ABB Compact Pushbuttons range and provides an integrated operator and contact solution for dependable machine control and mode selection.

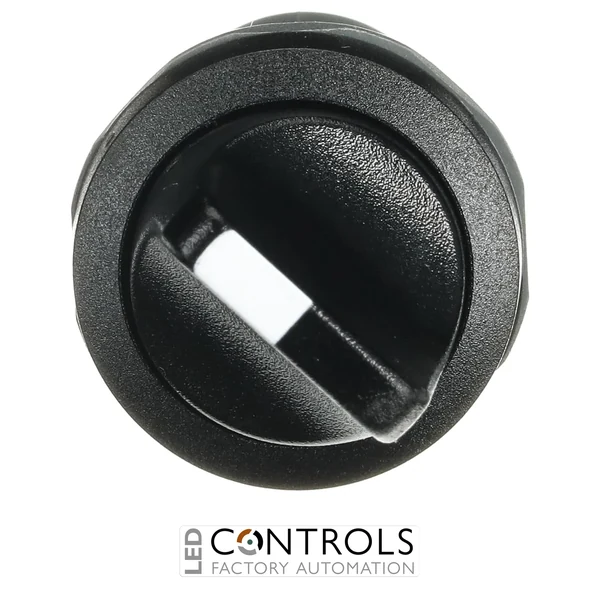

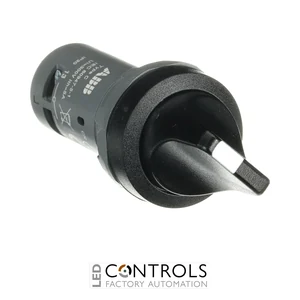

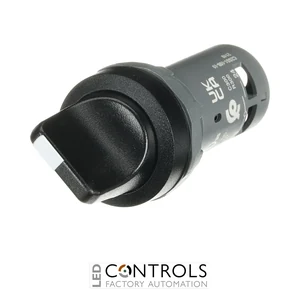

This selector switch features a black short-handle actuator with a black plastic bezel and a fixed two-position operating mechanism. The maintained action holds the selector in its chosen position until it is deliberately moved, making it suitable for functions such as on/off selection, operating-mode selection and other maintained control commands.
The C2SS1-10B-10 incorporates one normally open (1NO) contact and is non-illuminated. Designed for standard 22 mm panel mounting, its compact all-in-one construction simplifies installation while the front of the operator provides IP66 protection for dependable use in industrial environments.
Key Advantages
- Compact 2-position selector switch designed for industrial control applications.
- Maintained switching action holds the selected operating position.
- Black short-handle actuator provides straightforward manual selection.
- Integrated 1NO contact configuration for control-circuit switching.
- IP66 front protection provides resistance to dust and water.
- Compact all-in-one construction helps reduce installation time and component requirements.
- Standard 22 mm panel mounting simplifies integration into machinery and control panels.
Key Features
- ABB Compact Pushbuttons range.
- C2SS1-10B-10 compact selector switch.
- 2-position fixed / maintained operation.
- Short-handle actuator.
- Black actuator.
- Black plastic bezel.
- 1 normally open (1NO) contact.
- Non-illuminated design.
- IP66 front protection.
- 22 mm panel mounting.
- Compact integrated construction for straightforward panel installation.
Reliable Selector Control for Industrial Machinery
Selector switches provide operators with a clear and dependable method of choosing between defined machine functions or operating states. The ABB C2SS1-10B-10 combines a two-position maintained mechanism with an integrated 1NO contact, allowing the selected control state to remain active until the short handle is deliberately moved to the alternative position.
The ABB Compact range is designed as an efficient all-in-one solution for machine builders, panel builders and automation engineers. The C2SS1-10B-10 combines its selector mechanism, contact function and black plastic bezel in a compact assembly suitable for standard 22 mm control-panel openings.
Typical Applications
- Industrial machinery and equipment.
- Factory automation and production systems.
- Machine operating-mode selection.
- Conveyor and material handling systems.
- Process and manufacturing machinery.
- Electrical control panels and operator stations.
- OEM machinery requiring maintained two-position selection.
