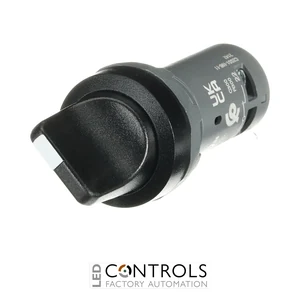

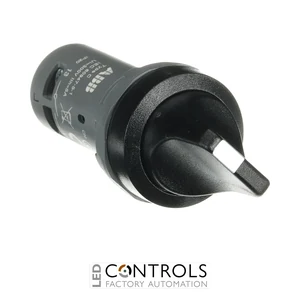

Why Choose the ABB C2SS1-10B-11 Compact Selector Switch?
The ABB C2SS1-10B-11 is a compact and reliable 2-position maintained selector switch designed for industrial machinery, control panels and automation systems. Identified by ABB order code 1SFA619200R1076, it forms part of the ABB Compact Pushbuttons range and combines the selector operator and contact functions in an efficient all-in-one design.

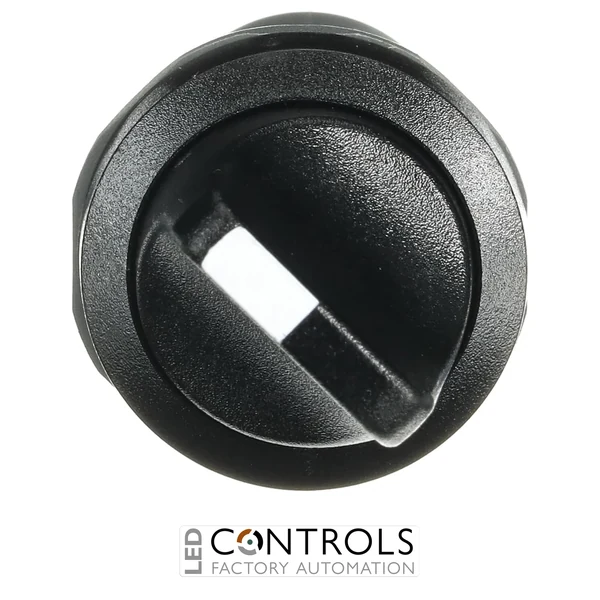

This selector switch features a black short-handle actuator with a black plastic bezel and fixed B and C operating positions. Its maintained action holds the selector in the chosen position until it is deliberately moved, making it suitable for operating-mode selection, function selection and other industrial control commands that require a retained switch position.
The C2SS1-10B-11 incorporates one normally open and one normally closed (1NO+1NC) contact and is non-illuminated. Designed for standard 22 mm panel mounting, its compact construction simplifies installation while providing robust environmental protection for demanding industrial control applications.
Key Advantages
- Compact 2-position selector switch designed for industrial control applications.
- Maintained switching action holds the selected operating position.
- Black short-handle actuator provides straightforward manual selection.
- Integrated 1NO+1NC contact configuration provides complementary control-circuit switching.
- High front-side environmental protection for demanding industrial installations.
- Mechanical durability of 0.5 million operations.
- Standard 22 mm panel mounting simplifies integration into machinery and control panels.
Key Features
- ABB Compact Pushbuttons range.
- C2SS1-10B-11 compact selector switch.
- 2-position fixed / maintained operation.
- Maintained B and C positions.
- Black short-handle actuator.
- Black plastic bezel.
- 1 normally open (1NO) and 1 normally closed (1NC) contact.
- Non-illuminated design.
- 0.5 million operation mechanical durability.
- 22 mm panel mounting.
- Screw-terminal electrical connections.
- Compact integrated construction for straightforward panel installation.
Reliable Selector Control for Industrial Machinery
Selector switches provide operators with a clear and dependable method of choosing between defined machine functions or operating states. The ABB C2SS1-10B-11 combines a two-position maintained mechanism with one normally open and one normally closed contact, allowing complementary control-circuit functions to change state according to the selected position.
The ABB Compact range is designed for machine builders, panel builders and industrial automation engineers requiring efficient operator controls with straightforward installation. The C2SS1-10B-11 combines its selector mechanism, integrated contacts and black plastic bezel in a compact assembly suitable for standard 22 mm control-panel openings.
Typical Applications
- Industrial machinery and equipment.
- Factory automation and production systems.
- Machine operating-mode selection.
- Conveyor and material handling systems.
- Process and manufacturing machinery.
- Electrical control panels and operator stations.
- OEM machinery requiring maintained two-position selection.
