Why Choose the ABB C2SS1-30B-20 Compact Selector Switch?
The ABB C2SS1-30B-20 is a compact two-position maintained selector switch designed for reliable operator control in industrial machinery, electrical control panels and automation systems. As part of the ABB Compact pilot device range, it combines the selector operator and contact functions in an efficient all-in-one assembly for straightforward panel installation.

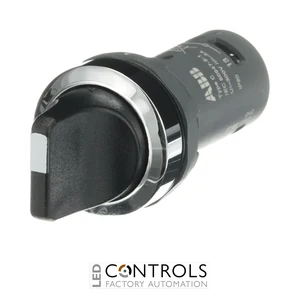

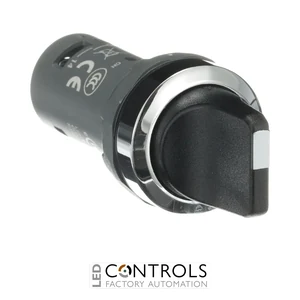

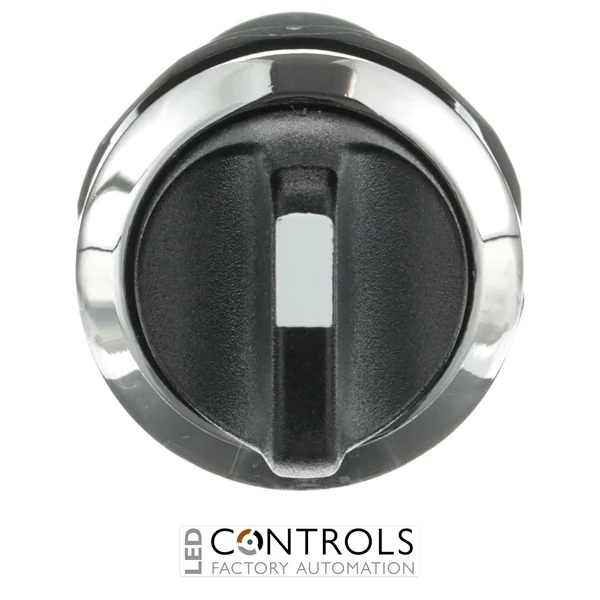

This selector switch features a black short-handle actuator with a chrome metal bezel and provides two maintained positions arranged at a 45° operating angle. Its integrated 2 normally open (2 NO) contacts allow two control circuits to be switched from a single selector, making it suitable for machine mode, function and equipment selection.
Designed for standard 22 mm panel mounting, the C2SS1-30B-20 combines compact construction with IP66 front protection for demanding industrial environments. Screw-terminal connections support practical control-panel wiring, while ABB order code 1SFA619200R3026 identifies this exact Compact selector switch configuration.
Key Advantages
- Compact two-position selector switch for industrial operator control.
- Maintained operation keeps the selected state engaged after the handle is released.
- Integrated 2 normally open (2 NO) contacts provide dual switching capability.
- Black short-handle actuator provides straightforward manual selection.
- Chrome metal bezel provides a robust and professional panel interface.
- Standard 22 mm panel mounting simplifies integration into industrial control equipment.
Key Features
- ABB C2SS1 Compact selector switch series.
- Two-position selector operation.
- Maintained switching action.
- 45° selector operating angle.
- 2 normally open (2 NO) contacts.
- Black short-handle actuator.
- Non-illuminated construction.
- Chrome metal bezel.
- 22 mm panel mounting format.
- Screw-terminal electrical connections.
- IP66 front protection for industrial environments.
Reliable Selection Control for Industrial Machinery
Selector switches provide operators with a direct method of choosing between defined machine states or control functions. The ABB C2SS1-30B-20 provides two maintained positions, allowing the black short handle to remain in its selected position until deliberately moved. Its two normally open contacts enable two control circuits or signals to be switched through the same selector operation.
The ABB Compact range uses an all-in-one construction designed to reduce installation complexity and panel space requirements. With standard 22 mm mounting, screw-terminal connections, a chrome metal bezel and IP66 front protection, the C2SS1-30B-20 is well suited to machinery panels, operator stations and OEM automation equipment.
Typical Applications
- Industrial machinery control panels.
- Machine mode and function selection.
- Operator control stations and consoles.
- Conveyor and material handling systems.
- Production and assembly machinery.
- Process control and automation equipment.
- OEM machinery and electrical control systems.
