Why Choose the ABB C2SS2-30B-10 Compact Selector Switch?
The ABB C2SS2-30B-10 is a compact two-position maintained selector switch designed for dependable operator control in industrial machinery, electrical control panels and automation systems. As part of the ABB Compact pilot device range, it combines the selector operator and electrical contact function in an efficient all-in-one assembly.

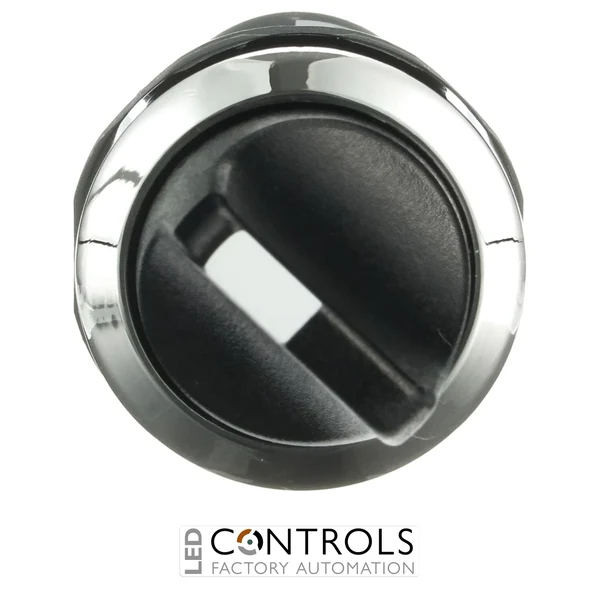

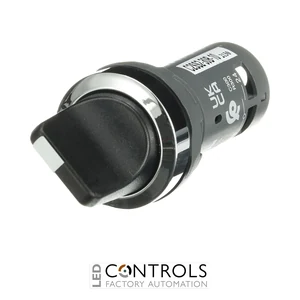

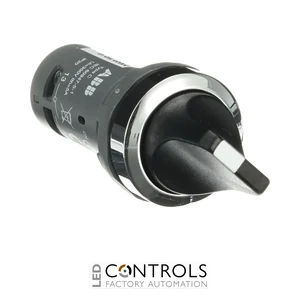

This selector switch features a black short-handle actuator, non-illuminated construction and a robust chrome metal bezel. Its two fixed A and C positions provide maintained operation, while the integrated 1 normally open (1 NO) contact provides a straightforward switching function for machine mode, equipment and process control circuits.
Designed for standard 22 mm panel mounting, the C2SS2-30B-10 provides strong resistance to industrial environments with IP66, IP67 and IP69K front protection. Screw-terminal connections simplify control-panel wiring, while ABB order code 1SFA619201R3016 identifies this exact Compact selector switch configuration.
Key Advantages
- Compact two-position selector switch for industrial operator control.
- Fixed A and C positions provide maintained selection.
- Integrated 1 normally open (1 NO) contact for control-circuit switching.
- Black short-handle actuator provides straightforward manual operation.
- Chrome metal bezel provides a robust and professional panel interface.
- IP66 / IP67 / IP69K front protection supports installation in demanding industrial environments.
Key Features
- ABB C2SS2 Compact selector switch series.
- Two fixed positions: A and C.
- Maintained switching action.
- 1 normally open (1 NO) contact.
- Black short-handle actuator.
- Non-illuminated construction.
- Chrome metal bezel.
- 22 mm panel mounting format.
- Screw-terminal electrical connection.
- 300 V maximum rated operational voltage.
- IP66 / IP67 / IP69K front protection.
Reliable Selection Control for Industrial Machinery
Selector switches provide operators with a direct method of choosing between defined machine states or control functions. The ABB C2SS2-30B-10 provides two fixed maintained positions, A and C, so the short handle remains in the selected position until deliberately moved. Its normally open contact provides a simple electrical interface for machinery and automation control circuits.
The ABB Compact range combines operator and electrical switching functions in a space-efficient assembly designed to reduce installation time and component requirements. With standard 22 mm mounting, a chrome metal bezel, screw-terminal connection and robust front ingress protection, the C2SS2-30B-10 is well suited to machinery panels, operator stations and OEM automation equipment.
Typical Applications
- Industrial machinery control panels.
- Machine mode and function selection.
- Operator control stations and consoles.
- Conveyor and material handling systems.
- Production and assembly machinery.
- Process control and automation equipment.
- OEM machinery and electrical control systems.
