Why Choose the ABB C2SS3-10B-01 Compact Selector Switch?
The ABB C2SS3-10B-01 is a compact two-position momentary selector switch designed for dependable operator control in industrial machinery, electrical control panels and automation systems. Part of the ABB Compact pilot device range, it combines the selector operator and electrical contact in an efficient all-in-one assembly.

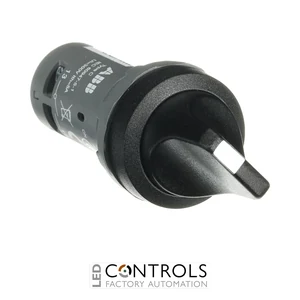

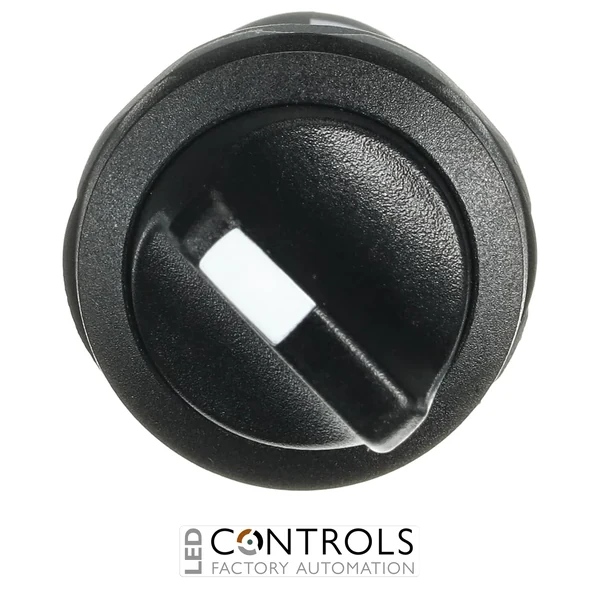

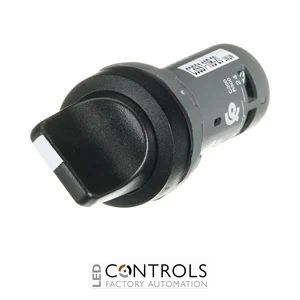

This selector switch features a black short-handle actuator, non-illuminated construction and a black plastic bezel. It provides spring return from position C to position B, while the integrated 1 normally closed (1 NC) contact provides the electrical switching function for control and signalling circuits.
Designed for standard 22 mm panel mounting, the C2SS3-10B-01 provides IP66, IP67 and IP69K front protection for demanding industrial environments. Screw-terminal connections support practical panel wiring, while ABB order code 1SFA619202R1046 identifies this exact Compact selector switch configuration.
Key Advantages
- Compact two-position momentary selector switch for industrial operator control.
- Spring return from C to B automatically returns the selector after momentary operation.
- Integrated 1 normally closed (1 NC) contact for control-circuit switching.
- Black short-handle actuator provides straightforward manual operation.
- IP66 / IP67 / IP69K front protection supports demanding industrial environments.
- All-in-one ABB Compact construction helps reduce installation time and component requirements.
Key Features
- ABB C2SS3 Compact selector switch series.
- Two-position selector operation.
- Momentary operating action.
- Spring return from C to B.
- 1 normally closed (1 NC) contact.
- Black short-handle actuator.
- Non-illuminated construction.
- Black plastic bezel.
- 22 mm panel mounting format.
- Screw-terminal electrical connection.
- 24–300 V rated operational voltage range.
- IP66 / IP67 / IP69K front protection.
Momentary Selection Control for Industrial Machinery
The ABB C2SS3-10B-01 provides momentary two-position control with spring return from C to B. When the operator moves the short handle to position C and releases it, the selector automatically returns to position B, making the device suitable for temporary commands and control functions where a maintained selection is not required.
Its integrated 1 NC contact provides a normally closed switching path for connection to machine and automation control circuits. Combined with the compact all-in-one construction, standard 22 mm panel format, screw terminals and high front ingress protection, the C2SS3-10B-01 is well suited to industrial operator stations and OEM machinery.
Typical Applications
- Industrial machinery control panels.
- Momentary machine commands and control functions.
- Operator control stations and consoles.
- Conveyor and material handling equipment.
- Production and assembly machinery.
- Process control and automation systems.
- OEM machinery and electrical control equipment.
