Why Choose the ABB C2SS3-10B-11 Compact Selector Switch?

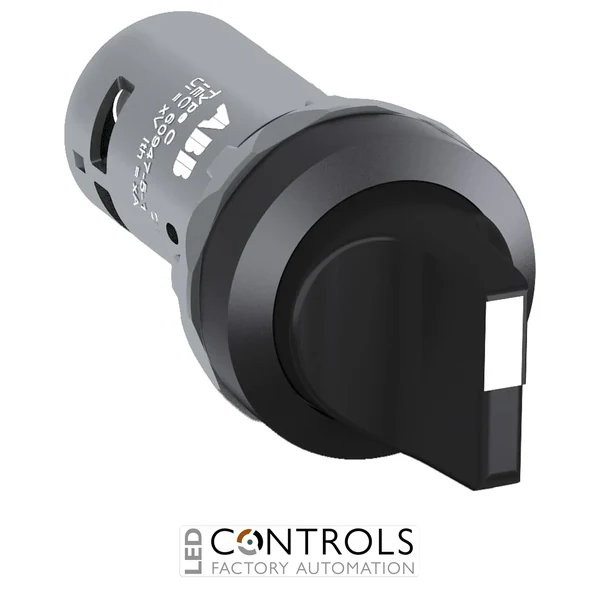

The ABB C2SS3-10B-11 is a compact and reliable 2-position momentary selector switch designed for industrial machinery, control panels and automation systems. Identified by ABB order code 1SFA619202R1076, it forms part of the ABB Compact Pushbuttons range and combines the selector operator and contact functions in an efficient all-in-one design.
This selector switch features a black short-handle actuator with a black plastic bezel and momentary operation with spring return from C to B. This operating action makes it suitable for temporary machine commands, control inputs and functions where the selector should automatically return to its normal position after release.
The C2SS3-10B-11 incorporates one normally open and one normally closed (1NO+1NC) contact and is non-illuminated. Designed for standard 22 mm panel mounting, it provides IP66, IP67 and IP69K front protection and combines dependable switching with compact dimensions for demanding industrial control environments.
Key Advantages
- Compact 2-position momentary selector switch for industrial control applications.
- Spring return from C to B automatically returns the selector after release.
- Black short-handle actuator provides straightforward manual operation.
- Integrated 1NO+1NC contact configuration provides complementary switching functions.
- IP66, IP67 and IP69K front protection supports use in demanding industrial environments.
- Compact all-in-one construction helps reduce installation time and component requirements.
- Standard 22 mm panel mounting simplifies integration into machinery and control panels.
Key Features
- ABB Compact Pushbuttons range.
- C2SS3-10B-11 compact selector switch.
- 2-position momentary operation.
- Spring return from C to B.
- Black short-handle actuator.
- Black plastic bezel.
- 1 normally open (1NO) and 1 normally closed (1NC) contact.
- Non-illuminated design.
- 300 V rated insulation voltage.
- IP66 / IP67 / IP69K front protection.
- 22 mm panel mounting.
- Compact integrated construction for straightforward panel installation.
Reliable Momentary Selector Control for Industrial Machinery
Momentary selector switches provide operators with a convenient method of issuing temporary machine commands while automatically restoring the control to its normal position after release. The ABB C2SS3-10B-11 uses a two-position mechanism with spring return from C to B, making it suitable for control functions where the selected command should remain active only while the operator is deliberately actuated.
The ABB Compact range is designed for machine builders, panel builders and industrial automation engineers requiring efficient operator controls with straightforward installation. The C2SS3-10B-11 combines its momentary selector mechanism, integrated 1NO+1NC contacts, black short handle and black plastic bezel in a compact assembly suitable for standard 22 mm control-panel openings.
Typical Applications
- Industrial machinery and equipment.
- Factory automation and production systems.
- Momentary machine control commands.
- Conveyor and material handling systems.
- Process and manufacturing machinery.
- Electrical control panels and operator stations.
- OEM machinery requiring spring-return selector control.
