Why Choose the ABB C3SS1-30B-02 Compact Selector Switch?
The ABB C3SS1-30B-02 is a compact three-position maintained selector switch designed for dependable operator control in industrial machinery, electrical control panels and automation systems. Part of the ABB Compact pilot device range, it combines the selector operator and electrical contacts in a space-efficient complete assembly.

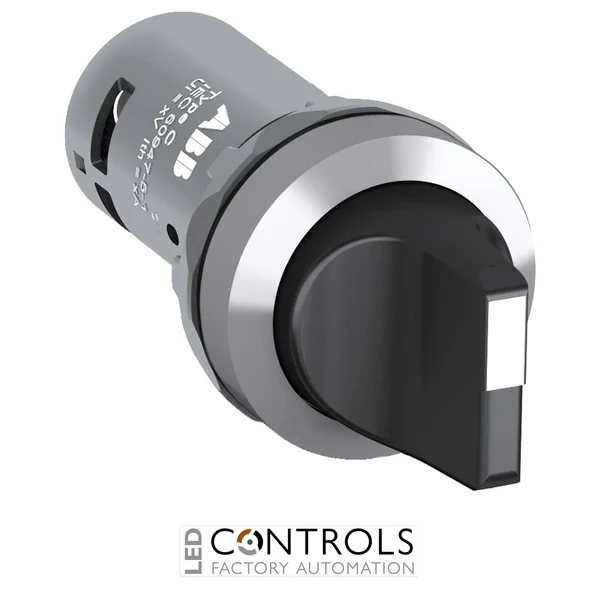

This selector switch features a black short-handle actuator, non-illuminated construction and a robust chrome metal bezel. Its three fixed A, B and C positions provide maintained selection, while the integrated 2 normally closed (2 NC) contacts provide switching functions for industrial control circuits.
Designed for standard 22 mm panel mounting, the C3SS1-30B-02 has a compact 30 × 30 × 72 mm form factor and screw-terminal electrical connections. ABB order code 1SFA619210R3056 identifies this exact three-position, black short-handle, chrome-bezel and 2 NC selector switch configuration.
Key Advantages
- Compact three-position maintained selector switch for industrial operator control.
- Fixed A, B and C positions provide three clearly defined maintained selections.
- Integrated 2 normally closed (2 NC) contacts provide dual switching capability.
- Black short-handle actuator provides straightforward manual selection.
- Chrome metal bezel provides a durable industrial panel interface.
- Standard 22 mm panel mounting supports straightforward integration into machinery and automation equipment.
Key Features
- ABB C3SS1 Compact selector switch series.
- Three fixed positions: A, B and C.
- Maintained operating action.
- 2 normally closed (2 NC) contacts.
- Black short-handle actuator.
- Non-illuminated construction.
- Chrome metal bezel.
- 22 mm panel mounting format.
- Screw-terminal electrical connections.
- 0.5 million-operation mechanical durability.
Maintained Three-Position Control for Industrial Machinery
The ABB C3SS1-30B-02 provides three fixed selector positions identified as A, B and C. Its maintained operating principle means the short handle remains in the selected position after release, making the device suitable for machine modes and control functions that require a persistent operator selection.
The integrated 2 NC contact arrangement provides two normally closed switching paths within the compact device. Combined with its black short handle, chrome metal bezel, standard 22 mm mounting format and screw terminals, the C3SS1-30B-02 provides a practical operator interface for machinery panels, control stations and OEM automation equipment.
Typical Applications
- Industrial machinery control panels.
- Three-position machine mode selection.
- Operator control stations and consoles.
- Conveyor and material handling systems.
- Production and assembly machinery.
- Process control and automation equipment.
- OEM machinery and electrical control systems.
