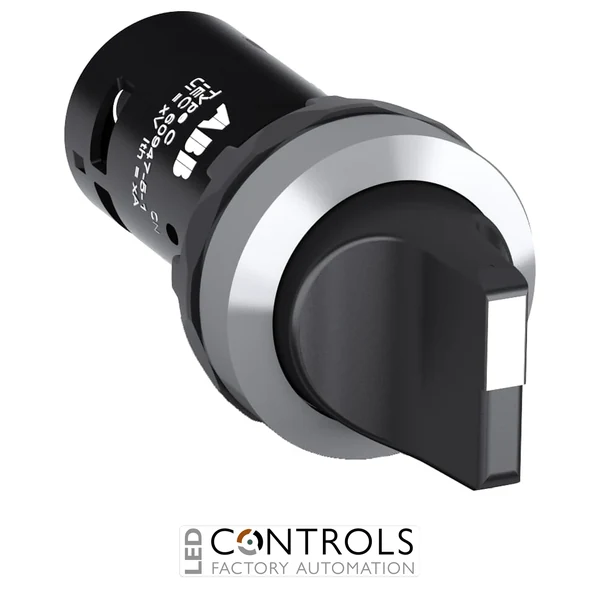

Why Choose the ABB C3SS2-30B-11 Compact Selector Switch?
The ABB C3SS2-30B-11 is a compact three-position spring-return selector switch designed for dependable operator control in industrial machinery, electrical control panels and automation systems. Part of the ABB Compact pilot device range, it combines the selector operator and electrical contacts in a space-efficient complete assembly.
This selector switch features a black short-handle actuator, non-illuminated construction and a robust chrome metal bezel. Its three-position A/B/C operating arrangement uses spring-return action, while the integrated 1 normally open + 1 normally closed (1 NO + 1 NC) contacts provide complementary switching functions for industrial control circuits.
Designed for standard 22 mm panel mounting, the C3SS2-30B-11 provides a compact operator interface with ABB's proven short-handle design. The chrome metal bezel and approximately 0.032 kg device weight make it suitable for machinery panels, operator stations and OEM equipment, while ABB order code 1SFA619211R3076 identifies this exact configuration.
Key Advantages
- Compact three-position spring-return selector switch for industrial operator control.
- A/B/C selector arrangement supports clearly defined three-position operation.
- Integrated 1 NO + 1 NC contacts provide complementary switching functions.
- Black short-handle actuator provides straightforward manual operation.
- Chrome metal bezel provides a robust industrial panel interface.
- Standard 22 mm panel format supports straightforward integration into industrial control equipment.
Key Features
- ABB C3SS2 Compact selector switch series.
- Three-position A/B/C selector operation.
- Spring-return operating principle.
- 1 normally open + 1 normally closed contact.
- Black short-handle actuator.
- Non-illuminated construction.
- Chrome metal bezel.
- 22 mm compact pilot-device format.
- Contacts provide complementary switching across the outer selector positions.
- Compact complete-device construction for machinery and automation panels.
Spring-Return Three-Position Control for Industrial Machinery
The ABB C3SS2-30B-11 provides three-position operator control using an A/B/C selector arrangement and spring-return operating principle. This configuration is designed for momentary machine commands where the operator deliberately moves the short handle to initiate a control function rather than leaving an outer command permanently selected.
The integrated 1 NO + 1 NC contact arrangement provides complementary switching behaviour, with the NC contact actuated in position A and the NO contact actuated in position C. Combined with its black short handle, chrome metal bezel and compact 22 mm format, the C3SS2-30B-11 provides a practical interface for directional commands, machine functions and industrial automation controls.
Typical Applications
- Industrial machinery control panels.
- Momentary directional control commands.
- Machine positioning and movement controls.
- Operator control stations and consoles.
- Conveyor and material handling equipment.
- Production and assembly machinery.
- Process control and automation systems.
- OEM machinery and electrical control equipment.
