Why Choose the ABB C3SS7-10B-11 Compact Selector Switch?
The ABB C3SS7-10B-11 is a compact three-position maintained/momentary selector switch designed for reliable operator control in industrial machinery, electrical panels and automation systems. Part of the ABB Compact pilot device range, it combines a short-handle actuator and integrated switching contacts in a space-efficient all-in-one device.
This selector switch provides fixed B and C positions with spring return from A to B, combining maintained and momentary control functions within one three-position operator. This configuration is particularly useful for machine and process controls that require retained operating states together with a temporary spring-return command.

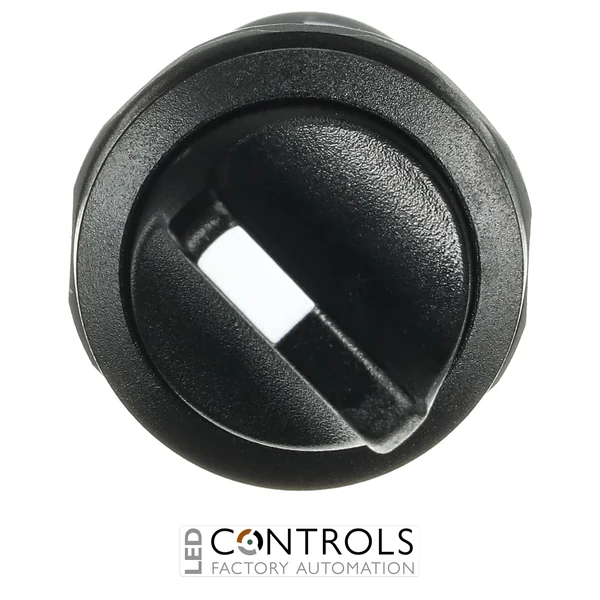

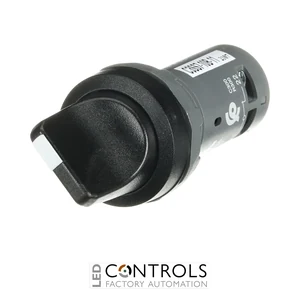

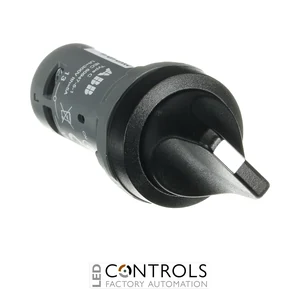

The C3SS7-10B-11 incorporates 1 normally open (1NO) and 1 normally closed (1NC) contact and features a black, non-illuminated short-handle actuator with a black plastic bezel. Rated for operation up to 300 V, its compact construction and high resistance to dust and water make it suitable for demanding industrial control environments.
Key Advantages
- Compact three-position selector switch for industrial control applications.
- Fixed B and C positions with spring return from A to B.
- Combined maintained and momentary operation in one operator.
- Integrated 1NO + 1NC contact configuration.
- Black short-handle actuator for straightforward manual control.
- High front protection of IP66, IP67 and IP69K.
- Compact all-in-one construction helps reduce installation time and panel space.
Key Features
- ABB C3SS7 Compact selector switch.
- Three operating positions.
- Maintained/momentary switching function.
- Fixed B and C positions.
- Spring return from A to B.
- 1NO + 1NC contacts.
- Black short-handle actuator.
- Black plastic bezel.
- Non-illuminated operator.
- 300 V rated voltage.
- Screw-terminal electrical connections.
Flexible Maintained and Momentary Machine Control
The ABB C3SS7-10B-11 combines maintained and spring-return functions in one compact three-position selector. Positions B and C provide fixed operating states, while position A provides a temporary command before the selector automatically returns from A to B, allowing multiple machine-control functions to be handled by a single operator.
Its integrated 1NO + 1NC contact arrangement provides complementary switching functions for PLC inputs, relays, contactors and other industrial control equipment. The compact construction, screw terminals and high degree of front protection make the C3SS7-10B-11 particularly suitable for machine-building and industrial automation installations.
Typical Applications
- Industrial machinery control panels.
- Operating-mode and function selection.
- Production and packaging machinery.
- Conveyor and material handling equipment.
- Process and motor control panels.
- PLC and industrial automation systems.
