Why Choose the ABB CL-100R Compact Pilot Light?

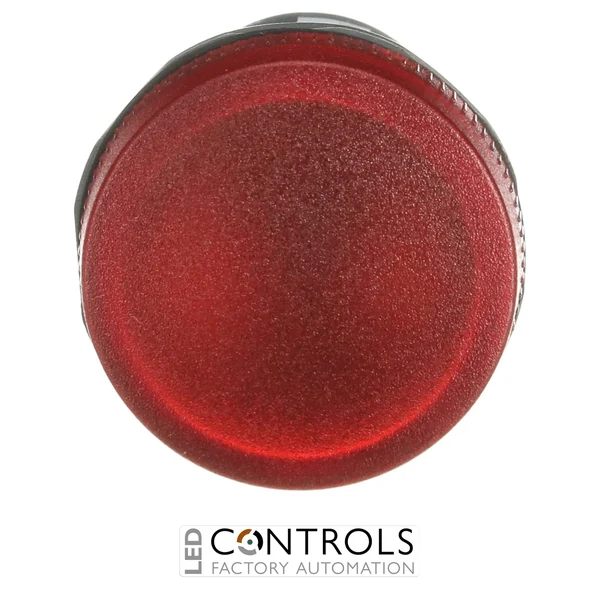

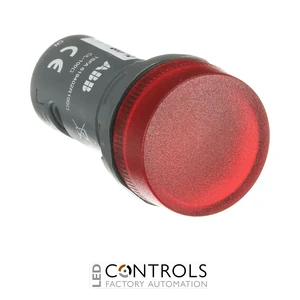

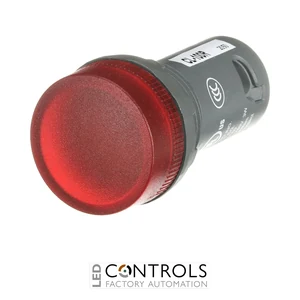

The ABB CL-100R is a compact red pilot light designed to provide clear visual status indication on industrial machinery, control panels and automation equipment. Identified by ABB order code 1SFA619402R1001, it forms part of the ABB Compact Pushbuttons range and provides an efficient all-in-one signalling solution for panel-mounted applications.
The CL-100R features a red round lens and a BA9s lamp base, allowing a suitable replaceable lamp to be selected for the required control circuit. The pilot light is supplied without a bulb, enabling the appropriate compatible BA9s light source to be ordered separately for the application.
Designed for standard 22 mm panel mounting, the CL-100R combines a compact installation footprint with IP66, IP67 and IP69K front protection. Its robust construction, screw-terminal connections and wide operating-temperature range make it suitable for demanding industrial indication and signalling duties.
Key Advantages
- Clear red visual indication for industrial status and warning applications.
- BA9s lamp base allows use with a compatible replaceable bulb.
- Bulb is not included, allowing the light source to be selected to suit the application.
- IP66, IP67 and IP69K front protection provides excellent resistance to dust and water.
- Compact all-in-one construction helps simplify panel installation.
- Screw-terminal connections provide practical field wiring.
- Standard 22 mm panel mounting simplifies integration into industrial control panels.
- Suitable for operating temperatures from -25 to +70 °C.
Key Features
- ABB Compact Pushbuttons range.
- CL-100R compact pilot light.
- Red illuminated indication.
- Round pilot-light head.
- BA9s lamp type.
- Replaceable bulb design.
- Bulb not included.
- Suitable for bulbs up to 3 W.
- IP66 / IP67 / IP69K front protection.
- IP20 terminal protection.
- 22 mm panel mounting.
- Screw terminals for electrical connection.
Clear Visual Signalling for Industrial Control Systems
Pilot lights provide operators with immediate visual information about the condition of machinery and electrical control systems. Depending on the associated control circuit, a red pilot light can be used to identify an active condition, warning, fault or other defined machine state, helping operators recognise system status directly from the control panel.
The ABB CL-100R uses a replaceable BA9s lamp arrangement rather than an integrated fixed light source. This allows a compatible bulb to be selected separately for the required electrical supply and signalling application, while the compact 22 mm panel-mounting format makes the pilot light straightforward to integrate into industrial operator stations and control enclosures.
Typical Applications
- Industrial machinery and equipment.
- Electrical control panels and operator stations.
- Machine status indication.
- Warning and attention indication.
- Factory automation and production systems.
- Conveyor and material handling equipment.
- Process and manufacturing machinery.
- OEM equipment requiring compact red visual signalling.
