Why Choose the ABB CL-100G Compact Pilot Light?

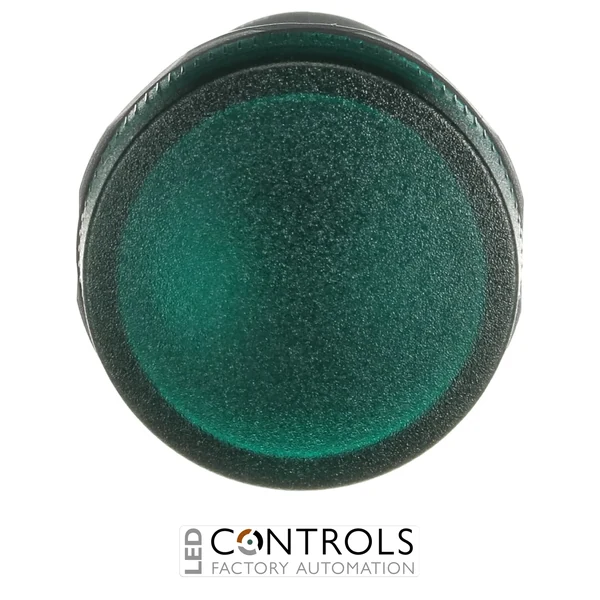

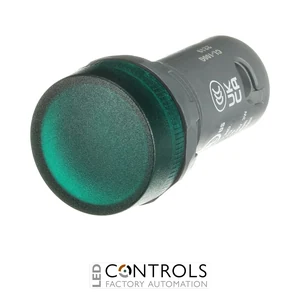

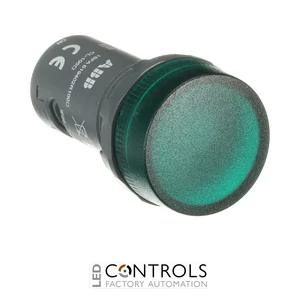

The ABB CL-100G is a compact green pilot light designed to provide clear visual status indication on industrial machinery, control panels and automation equipment. Identified by ABB order code 1SFA619402R1002, it forms part of the ABB Compact Pushbuttons range and provides an efficient all-in-one signalling solution for panel-mounted applications.
The CL-100G features a green pilot-light head and a BA9s lamp base, allowing a suitable replaceable lamp to be selected for the required control circuit. The pilot light is supplied without a bulb, enabling the appropriate compatible BA9s light source to be ordered separately for the application.
Designed for standard 22 mm panel mounting, the CL-100G combines a compact installation footprint with straightforward electrical connection and a wide operating-temperature range. Its illuminated design and green lens make it a practical choice for machine status, running, ready and other defined indication functions in industrial control systems.
Key Advantages
- Clear green visual indication for industrial status and signalling applications.
- BA9s lamp base allows use with a compatible replaceable bulb.
- Bulb is not included, allowing the light source to be selected to suit the application.
- Suitable for compatible bulbs up to 3 W.
- Compact all-in-one construction helps simplify panel installation.
- Screw-terminal connections provide practical field wiring.
- Standard 22 mm panel mounting simplifies integration into industrial control panels.
- Suitable for operating temperatures from -25 to +70 °C.
Key Features
- ABB Compact Pushbuttons range.
- CL-100G compact pilot light.
- Green illuminated indication.
- Green pilot-light head.
- BA9s lamp type.
- Replaceable bulb design.
- Bulb not included.
- Suitable for bulbs up to 3 W.
- 240 V rated control supply voltage.
- 50 / 60 Hz rated supply frequency.
- IP20 auxiliary terminal protection.
- 22 mm panel mounting.
- Screw terminals for electrical connection.
Clear Visual Signalling for Industrial Control Systems
Pilot lights provide operators with immediate visual information about the condition of machinery and electrical control systems. A green pilot light is commonly incorporated into control schemes where a clearly visible indication is required for a defined machine or process state, such as running, ready, available or another condition assigned by the system designer.
The ABB CL-100G uses a replaceable BA9s lamp arrangement rather than an integrated fixed light source. This allows a compatible bulb to be selected separately for the required electrical supply and signalling application, while the compact 22 mm panel-mounting format makes the pilot light straightforward to integrate into industrial operator stations and control enclosures.
Typical Applications
- Industrial machinery and equipment.
- Electrical control panels and operator stations.
- Machine running and ready indication.
- Equipment availability and status indication.
- Factory automation and production systems.
- Conveyor and material handling equipment.
- Process and manufacturing machinery.
- OEM equipment requiring compact green visual signalling.
