Why Choose the ABB CL-100Y Compact Pilot Light?

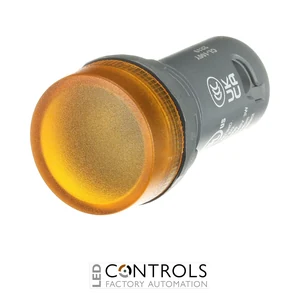

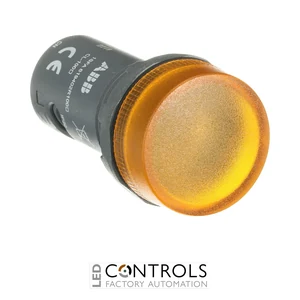

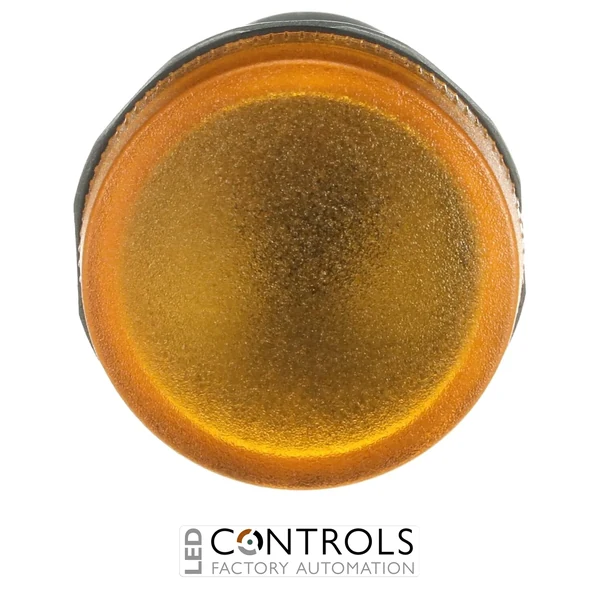

The ABB CL-100Y is a compact yellow pilot light designed for clear visual status indication on industrial machinery, electrical control panels and automation equipment. Part of ABB's Compact pilot-device range, it provides a space-efficient panel-mounted signalling solution with a highly visible round yellow lens.
The CL-100Y uses a BA9s replaceable lamp base, allowing a suitable lamp to be selected separately for the required control circuit. The pilot light is supplied without a bulb, enabling the illumination source to be matched to the application's electrical requirements rather than being permanently integrated into the operator.
Designed for a standard 22 mm panel cut-out, the CL-100Y has an overall depth of approximately 42 mm and accommodates panel thicknesses from 1.5–6 mm. Its compact construction, yellow indication and industrial front protection make it suitable for machine status, warning and process-indication duties.
Key Advantages
- Highly visible yellow indication for industrial status and warning functions.
- BA9s replaceable lamp base allows the illumination source to be selected for the application.
- Standard 22 mm panel cut-out supports straightforward control-panel integration.
- Compact 42 mm overall depth helps conserve space behind the panel.
- Suitable for panel thicknesses from 1.5–6 mm.
- ABB Compact construction provides a practical all-in-one pilot-light assembly for industrial equipment.
Key Features
- ABB CL Compact pilot light series.
- Yellow round lens.
- Illuminated pilot-light head.
- BA9s lamp base.
- Replaceable bulb design.
- Bulb not included and ordered separately.
- 22 mm panel cut-out.
- IP66 front protection.
- Panel mounting.
- Compact construction for industrial machinery and automation panels.
Clear Visual Status Indication for Industrial Equipment
The ABB CL-100Y provides a dedicated yellow visual indication point for control panels and machinery. Depending on the machine's control philosophy, the yellow lens can be used to communicate an operating condition, warning or other defined status to personnel, helping provide an immediately recognisable visual interface.
Its BA9s lamp holder allows the bulb to be replaced or selected separately, while the compact 22 mm panel format simplifies installation alongside compatible ABB pilot devices. With a depth of approximately 42 mm and support for panel thicknesses between 1.5 and 6 mm, the CL-100Y is suitable for both OEM machinery and general industrial control-panel construction.
Typical Applications
- Industrial machinery status indication.
- Electrical control and automation panels.
- Machine warning and condition indication.
- Operator control stations and consoles.
- Conveyor and material handling equipment.
- Production and assembly machinery.
- Process control systems.
- OEM machinery and electrical equipment.
