Why Choose the ABB CL-100L Compact Pilot Light?

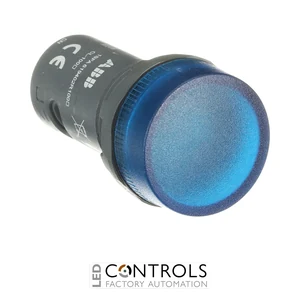

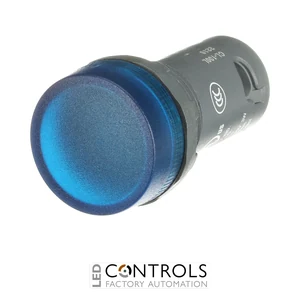

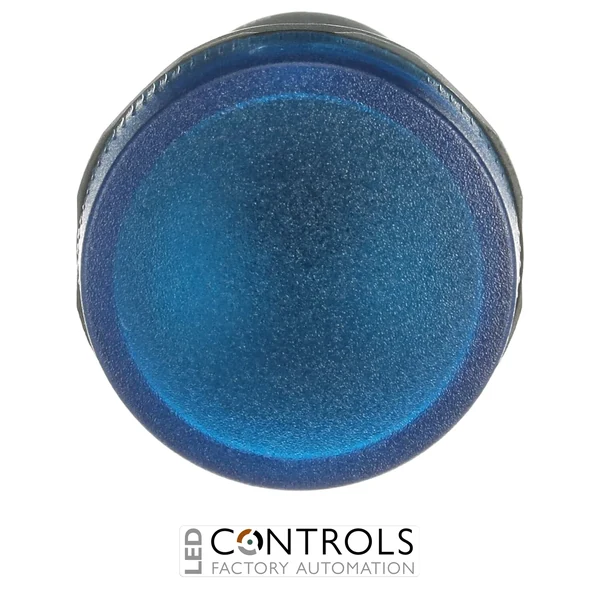

The ABB CL-100L is a compact blue pilot light designed for clear visual status indication on industrial machinery, electrical control panels and automation equipment. Part of ABB's Compact pilot-device range, it provides a space-efficient panel-mounted signalling solution with a highly visible round blue lens.
The CL-100L uses a BA9s replaceable lamp base, allowing the illumination source to be selected separately to suit the control circuit. The bulb is not included with the pilot light, providing flexibility to select a compatible BA9s lamp for the required electrical application.
Designed for the standard 22 mm Compact pilot-device format, the CL-100L has an overall depth of approximately 42 mm and accommodates panel thicknesses from approximately 1.5–6 mm. Its compact construction and blue indication make it suitable for machine status, process indication and operator-interface applications.
Key Advantages
- Highly visible blue indication for industrial status and signalling functions.
- BA9s replaceable lamp base allows a compatible illumination source to be selected separately.
- Standard 22 mm Compact panel format supports straightforward control-panel integration.
- Compact approximately 42 mm overall depth helps conserve space behind the panel.
- Suitable for panel thicknesses from approximately 1.5–6 mm.
- ABB Compact construction provides a practical pilot-light solution for machinery and automation equipment.
Key Features
- ABB CL Compact pilot light series.
- Blue round lens.
- Illuminated pilot-light head.
- BA9s lamp base.
- Replaceable lamp design.
- Bulb not included and ordered separately.
- 22 mm Compact panel format.
- Screw connection.
- IP67/IP69K protection rating.
- Compact panel-mounted construction for industrial machinery and automation systems.
Clear Blue Visual Status Indication for Industrial Equipment
The ABB CL-100L provides a dedicated blue visual indication point for machinery and control panels. The blue lens can be assigned to an operating state, machine condition or other defined indication according to the equipment's control and signalling philosophy, giving operators a clear visual reference.
Its BA9s lamp socket allows the illumination source to be selected and replaced separately, while the compact 22 mm format simplifies installation alongside compatible ABB pilot devices. This combination makes the CL-100L suitable for both OEM machinery and general industrial control-panel construction where a compact blue indicator is required.
Typical Applications
- Industrial machinery status indication.
- Electrical control and automation panels.
- Machine condition and process indication.
- Operator control stations and consoles.
- Conveyor and material handling equipment.
- Production and assembly machinery.
- Process control systems.
- OEM machinery and electrical equipment.
