Why Choose the ABB CL2-502R Compact Pilot Light?

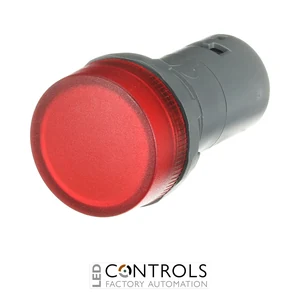

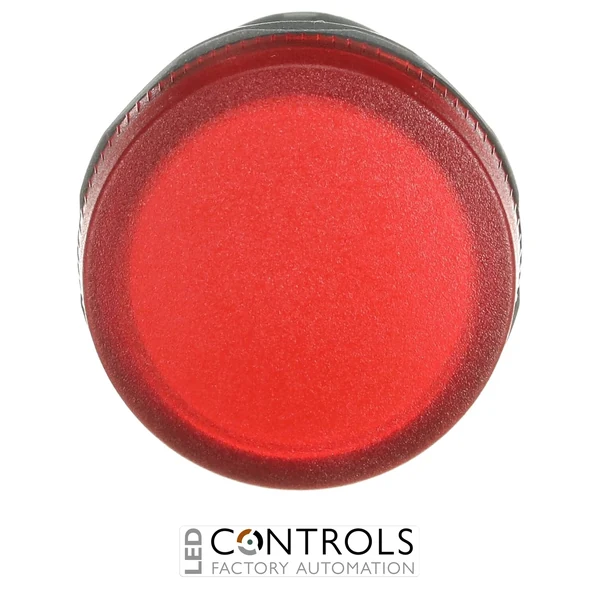

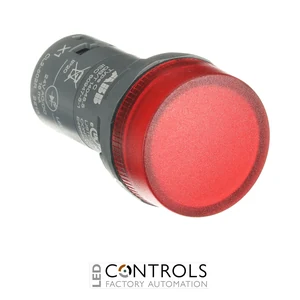

The ABB CL2-502R is a compact red LED pilot light designed to provide clear visual status indication on industrial machinery, electrical control panels and automation equipment. Part of the ABB CL2 Compact pilot device range, it combines the pilot-light head and LED light source in a convenient all-in-one signalling device.
The CL2-502R features a red illuminated lens with an integrated LED and operates from a 24 V AC/DC supply. Its integrated solid-state light source eliminates the need for a separate replaceable lamp, helping simplify installation and maintenance while providing efficient, dependable visual signalling.
Designed for standard 22 mm panel mounting, the CL2-502R uses screw-terminal connections and offers robust environmental protection for demanding industrial applications. Its compact dimensions, low current consumption and bright red indication make it well suited to machine-status, alarm and process-signalling functions.
Key Advantages
- Compact 24 V AC/DC red LED pilot light for industrial signalling.
- Integrated LED light source eliminates the need for a separate lamp.
- Low 16 mA rated current for efficient operation.
- 22 mm panel-mounting format for standard industrial control panels.
- IP67 and IP69K protection for demanding environments.
- Convenient screw-terminal connections.
- Compact all-in-one construction helps reduce installation time and panel space.
Key Features
- ABB CL2 Compact pilot light.
- 24 V AC/DC rated operational voltage.
- Integrated red LED illumination.
- 16 mA rated current.
- 625 nm LED wavelength.
- 80 lx illumination.
- Round, high-profile red lens.
- 22 mm mounting hole.
- Screw connection.
- IP67 / IP69K protection.
Efficient LED Signalling for Industrial Control Systems
Pilot lights provide operators with immediate visual information about machine states, process conditions and electrical control functions. The ABB CL2-502R provides a highly visible red indication point suitable for alarms, warnings, machine status and other signalling functions within 24 V AC/DC industrial control systems.
Integrated LED technology combines low current consumption with long-life solid-state illumination, while the compact 22 mm panel format simplifies integration into machinery and operator stations. Its robust environmental protection makes the CL2-502R particularly suitable for demanding industrial automation installations.
Typical Applications
- Industrial machinery control panels.
- Alarm, warning and machine-status indication.
- Production and packaging equipment.
- 24 V AC/DC control and automation circuits.
- Operator stations and control consoles.
- PLC and industrial automation systems.
