Why Choose the ABB CL2-502G Compact Pilot Light?

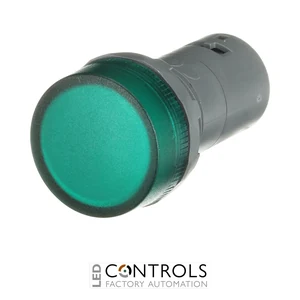

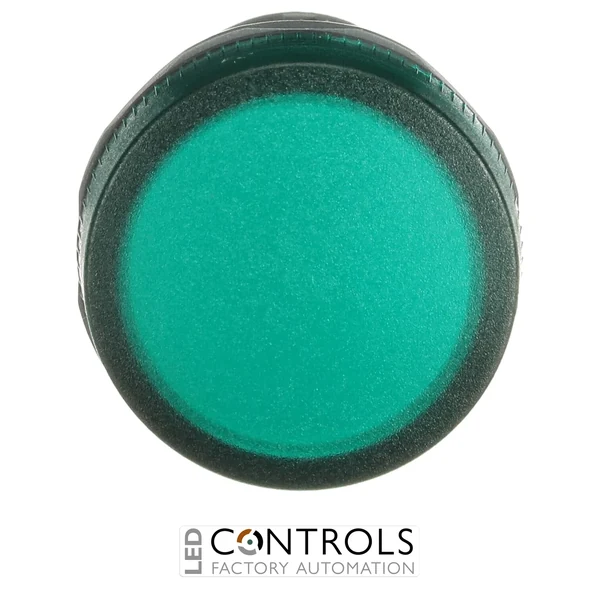

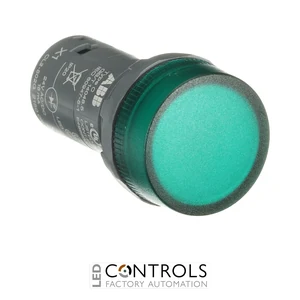

The ABB CL2-502G is a compact and reliable green LED pilot light designed for visual status indication in industrial control panels, machinery and automation systems. As part of the ABB Compact pilot device range, it combines the pilot light head and integrated LED into an efficient all-in-one signalling device.
Designed for straightforward panel installation, the CL2-502G provides clear green illumination for indicating operating states, machine conditions and control-system status. Its integrated LED eliminates the need for a separate replaceable lamp, while screw terminals provide practical electrical connection during panel assembly and maintenance.
With a rated operating voltage of 24 V AC/DC, a green LED and a standard 22 mm panel mounting format, the CL2-502G is well suited to industrial control stations and electrical enclosures. High degrees of ingress protection make the pilot light suitable for demanding industrial environments.
Key Advantages
- Compact green LED pilot light for industrial status indication.
- 24 V AC/DC operating voltage suitable for common industrial control circuits.
- Integrated LED light source eliminates the need for a separate bulb.
- Standard 22 mm panel mounting format for control panels and operator stations.
- High IP66, IP67 and IP69K ingress protection ratings.
- Compact all-in-one construction helps simplify installation and panel assembly.
Key Features
- ABB CL2 Compact pilot light series.
- Green illuminated indication.
- 24 V AC/DC rated operating voltage.
- Integrated LED illumination.
- 16 mA rated current.
- 22 mm mounting format.
- Screw terminals for electrical connection.
- Operating temperature range of -25 to +70 °C.
- Designed for industrial control and signalling applications.
Reliable Visual Indication for Industrial Control Systems
Pilot lights provide operators with immediate visual information about the operating condition of machinery and electrical systems. The green illumination of the ABB CL2-502G can be incorporated into control circuits to indicate application-defined states such as equipment operation, readiness or other machine conditions.
The ABB Compact range is designed as an all-in-one solution for industrial command and signalling applications. The CL2-502G combines an integrated LED, compact panel-mount construction and robust environmental protection to provide dependable indication while simplifying installation in control panels and operator interfaces.
Typical Applications
- Industrial electrical control panels.
- Machine operator stations and control consoles.
- PLC and automation control systems.
- Motor control panels and switchgear assemblies.
- Production and manufacturing machinery.
- OEM equipment and machine building.
