Why Choose the ABB CL2-506Y Compact Pilot Light?

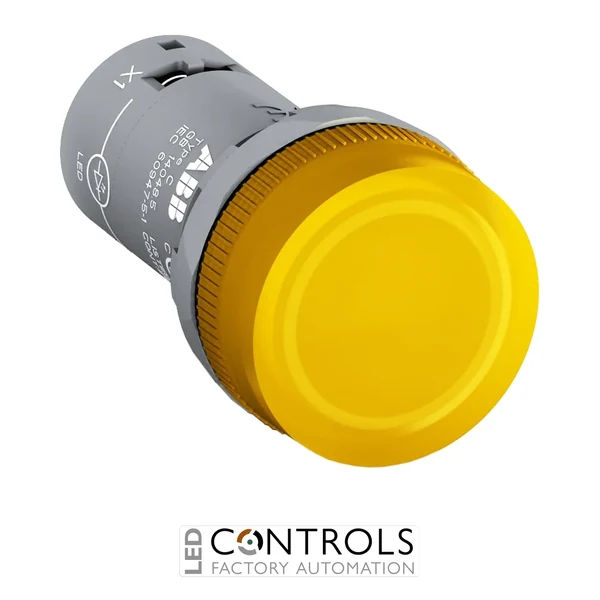

The ABB CL2-506Y is a compact yellow LED pilot light designed to provide clear visual status indication on industrial machinery, electrical control panels and automation equipment. Part of the ABB CL2 Compact pilot device range, it combines the pilot-light head and LED light source in a space-efficient integrated signalling device.
The CL2-506Y features yellow LED illumination and is specifically designed for a 6.3 V DC supply. Its integrated LED provides efficient solid-state illumination without requiring a separate replaceable lamp, helping simplify installation and maintenance in industrial control applications.
Designed for standard 22 mm panel mounting, the CL2-506Y features screw-terminal connections and robust front protection for demanding industrial environments. With a rated current of 16 mA, a yellow LED wavelength of 590 nm and illumination of 75 lx, it provides an efficient visual indication point for machinery and automation systems.
Key Advantages
- Compact 6.3 V DC yellow LED pilot light for industrial signalling.
- Integrated LED light source eliminates the need for a separate lamp.
- Low 16 mA rated current for efficient operation.
- Yellow visual indication for machine and process status signalling.
- 22 mm panel-mounting format for industrial control panels.
- IP66, IP67 and IP69K front protection for demanding environments.
- Compact all-in-one construction simplifies control-panel installation.
Key Features
- ABB CL2 Compact pilot light.
- 6.3 V DC rated operational voltage.
- Integrated yellow LED illumination.
- 16 mA rated current.
- 590 nm LED wavelength.
- 75 lx illumination.
- 2 Vpeak anti-inductive voltage.
- 22 mm mounting format.
- Screw-terminal connections.
- IP66 / IP67 / IP69K front protection.
Efficient LED Signalling for Industrial Control Systems
Pilot lights provide operators with immediate visual information about machine states, process conditions and electrical control functions. The ABB CL2-506Y provides a yellow illuminated indication point suitable for status, attention and other signalling functions within 6.3 V DC industrial control circuits.
Integrated LED technology provides efficient, low-maintenance illumination, while the compact 22 mm panel format simplifies integration into machinery and operator stations. Its high degree of front protection further supports dependable use in demanding machine-building and industrial automation environments.
Typical Applications
- Industrial machinery control panels.
- Machine status and condition indication.
- Production and packaging equipment.
- 6.3 V DC control and signalling circuits.
- Operator stations and control consoles.
- PLC and industrial automation systems.
